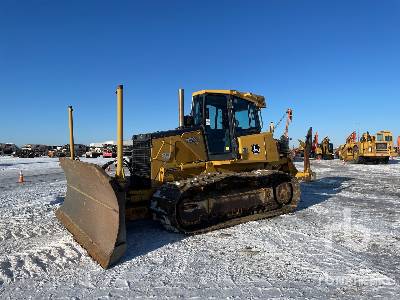

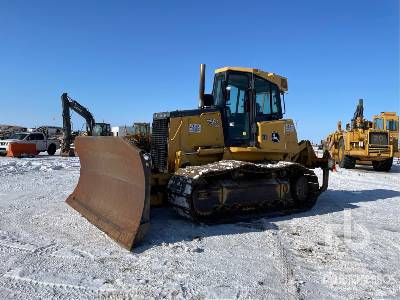

John Deere 750J Crawler Tractor

John Deere 750J Crawler Tractor Specs front
John Deere 750J Crawler Tractor Specs front
John Deere 750J Crawler Tractor Specs side
John Deere 750J Crawler Tractor Specs side
John Deere 750J Crawler Tractor Specs back
John Deere 750J Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

16.33 ft in

B

Width Over Tracks

8 ft in

C

Height to Top of Cab

10.17 ft in

D

Length of Track on Ground

8.51 ft in

E

Ground Clearance

1.18 ft in

Undercarriage

G

Track Gauge

6.17 ft in

H

Standard Shoe Size

22 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Engine Model

6068H

Gross Power

157 hp

Net Power

145 hp

Power Measured @

2100 rpm

Max Torque

500 lb ft

Displacement

414 cu in

Torque Measured @

1400 rpm

Aspiration

Turbocharged w/ after-cooler

Operational

Operating Weight

32585 lb

Fuel Capacity

98 gal

Cooling System Fluid Capacity

5.7 gal

Engine Oil Capacity

7 gal

Hydraulic Fluid Capacity

28 gal

Powertrain Fluid Capacity

28 gal

Final Drives Fluid Capacity

4 gal

Operating Voltage

24 V

Alternator Supplied Amperage

80 amps

Transmission

Transmission Type

Hydrostatic

Max Speed - Forward

6.3 mph

Max Speed - Reverse

6.3 mph

Undercarriage

Ground Pressure

7.3 psi

Ground Contact Area

4488 in2

Standard Shoe Size

22 in

Number of Shoes per Side

40

Number of Track Rollers per Side

7

Track Pitch

7.5 in

Track Gauge

6.2 ft in

Hydraulic System

Pump type

Piston

Relief Valve Pressure

3625 psi

Pump Flow Capacity

38 gal/min

Standard Blade

Width

10.9 ft in

Height

47 in

Capacity

4.3 yd3

Blade Angle (both directions)

23.5 degrees

Cutting Depth

24.4 in

Dimensions

Length w/ Blade

16.4 ft in

Width Over Tracks

8 ft in

Height to Top of Cab

10.2 ft in

Length of Track on Ground

8.6 ft in

Ground Clearance

1.2 ft in
