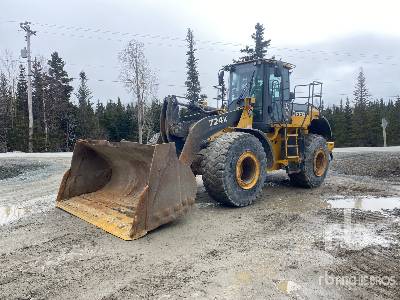

John Deere 724K High-Lift Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
10.93ft in
Bucket Capacity - Heaped
4.19yd3
Bucket Capacity - Struck
3.67yd3
Bucket Width
9.98ft in
Breakout Force
30610lb
Dimensions
E
Ground Clearance
1.32ft in
A
Length With Bucket On Ground
28.58ft in
B
Width Over Tires
9.45ft in
C
Height To Top Of Cab
11.09ft in
D
Wheelbase
10.7ft in
F
Hinge Pin - Max Height
14.64ft in
H
Reach At Max Lift And Dump
3.88ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6090H, Tier III certified
Net Power
264hp
Power Measured @
1800rpm
Max Torque
852lb ft
Displacement
548cu in
Torque Measured @
1300rpm
Aspiration
Turbocharged charge air cooled
Torque Rise
36%
Operational
Operating Weight
42483.1lb
Fuel Capacity
93gal
Hydraulic System Fluid Capacity
29.1gal
Engine Oil Fluid Capacity
7.4gal
Cooling System Fluid Capacity
9gal
Transmission Fluid Capacity
6.4gal
Front Axle/Diff Fluid Capacity
5.9gal
Rear Axle/Diff Fluid Capacity
5.9gal
Static Tipping Weight
29489.1lb
Turning Radius
18.6ft in
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Rear Axle Oscillation
26degrees
Tire Size
23.5 R25
Transmission
Transmission Type
Countershaft, powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
22.2mph
Max Speed - Reverse
15.1mph
Hydraulic System
Relief Valve Setting
3650psi
Pump Flow Capacity
81.9gal/min
Raise Time
5.5sec
Dump Time
1.4sec
Lower Time
3sec
Pump Type
Variable axial piston
