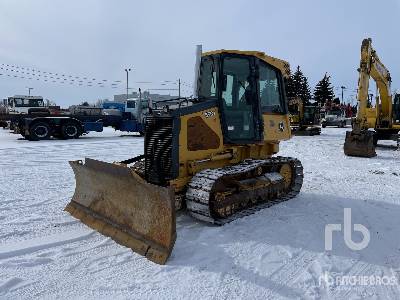

John Deere 700J XLT Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
15.67ft in
B
Width Over Tracks
7.67ft in
C
Height To Top Of Cab
9.83ft in
D
Length Of Track On Ground
8.5ft in
E
Ground Clearance
1.25ft in
Undercarriage
G
Track Gauge
5.83ft in
H
Standard Shoe Size
22.01in
Number Of Track Rollers Per Side
7
Ground Pressure
5.9psi
Number Of Shoes Per Side
39
Ground Contact Area
4514in2
Track Pitch
7.5in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6068T
Net Power
115hp
Max Torque
395lb ft
Displacement
414cu in
Aspiration
Turbocharged
Operational
Operating Weight
27124lb
Fuel Capacity
60gal
Cooling System Fluid Capacity
5.6gal
Engine Oil Capacity
5.1gal
Hydraulic Fluid Capacity
13.5gal
Powertrain Fluid Capacity
17.2gal
Final Drives Fluid Capacity
3.5gal
Operating Voltage
24V
Alternator Supplied Amperage
55amps
Transmission
Transmission Type
Hydrostatic
Max Speed - Forward
5.5mph
Max Speed - Reverse
5.5mph
Hydraulic System
Pump Type
Gear
Relief Valve Pressure
3200psi
Pump Flow Capacity
25gal/min
Standard Blade
Width
10ft in
Height
39.1in
Capacity
3.5yd3
Blade Angle (Both Directions)
25degrees
Cutting Depth
21in
