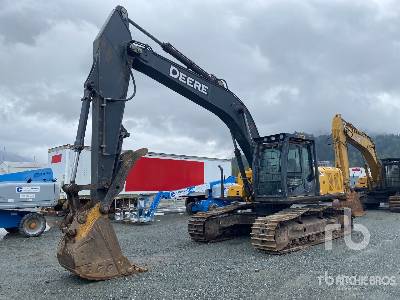

John Deere 690D Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
31.58ft in
C
Shipping Height Of Unit
9.58ft in
I
Max Cutting Height
29.8ft in
J
Max Loading Height
20.25ft in
K
Max Reach Along Ground
30ft in
L
Max Vertical Wall Digging Depth
15.83ft in
M
Max Digging Depth
19.5ft in
Boom/Stick Option (Hex) 1
Arm Length 7ft.3in.(2.20m)
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
31.17ft in
I
Max Cutting Height
31.83ft in
C
Shipping Height Of Unit
9.58ft in
J
Max Loading Height
21.5ft in
K
Max Reach Along Ground
32.3ft in
L
Max Vertical Wall Digging Depth
17.08ft in
M
Max Digging Depth
21.83ft in
Boom/Stick Option (Hex) 2
Arm Length 9ft 6in.(2.90m)
Dimensions
E
Ground Clearance
1.33ft in
G
Height To Top Of Cab
9.58ft in
B
Width To Outside Of Tracks
7.42ft in
D
Length Of Track On Ground
9.92ft in
H
Tail Swing Radius
8.92ft in
Removal Counterweight Clearance
2.92ft in
Undercarriage
F
Track Gauge
5.92ft in
N
Shoe Size
24in
Ground Pressure
6.5psi
Number Of Shoes Per Side
47
Drawbar Pull
36000lb
Max Travel Speed
2.4mph
Number Of Track Rollers Per Side
9
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6414T
Gross Power
132hp
Net Power
125hp
Power Measured @
2000rpm
Max Torque
420lb ft
Displacement
414cu in
Aspiration
Turbocharged
Torque Measured @
1300rpm
Operational
Operating Weight
39730lb
Fuel Capacity
70gal
Cooling System Fluid Capacity
21gal
Hydraulic System Fluid Capacity
96gal
Operating Voltage
24V
Engine Oil Capacity
20gal
Swing Drive Fluid Capacity
6gal
Alternator Supplied Amperage
42amps
Hydraulic System Relief Valve Pressure
4060psi
Hydraulic Pump Flow Capacity
50gal/min
Swing Mechanism
Swing Speed
13rpm
Buckets
Reference Bucket Capacity
1yd3
Minimum Bucket Capacity
0.6yd3
Maximum Bucket Capacity
1.4yd3
