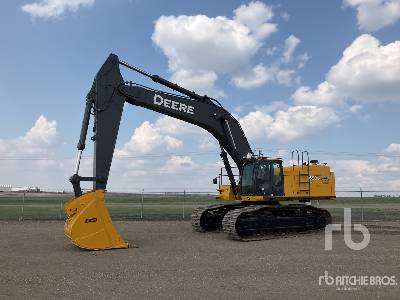

John Deere 650D LC Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
43.33ft in
C
Shipping Height Of Unit
14.67ft in
I
Max Cutting Height
39.08ft in
J
Max Loading Height
26.42ft in
K
Max Reach Along Ground
42.67ft in
L
Max Vertical Wall Digging Depth
24.25ft in
M
Max Digging Depth
28ft in
Boom/Stick Option (Hex) 1
25ft.7in. 7.8m Boom w/ 11ft. 10in. 3.6m Arm
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
43.33ft in
I
Max Cutting Height
40.17ft in
C
Shipping Height Of Unit
16.33ft in
J
Max Loading Height
27.33ft in
K
Max Reach Along Ground
44.67ft in
L
Max Vertical Wall Digging Depth
26.83ft in
M
Max Digging Depth
30ft in
Boom/Stick Option (Hex) 2
25ft. 7in. 7.8m Boom w/ 13ft.9in. 4.2m Arm
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
42.83ft in
I
Max Cutting Height
41.5ft in
J
Max Loading Height
30.08ft in
C
Shipping Height Of Unit
17.33ft in
K
Max Reach Along Ground
47.58ft in
L
Max Vertical Wall Digging Depth
31.25ft in
M
Max Digging Depth
32.92ft in
Boom/Stick Option (Hex) 3
25ft. 7in. 7.8m Boom w/ 17ft.5in. 5.3m Arm
Boom/Stick Option (Hex) 4
A
Shipping Length Of Unit
40.25ft in
C
Shipping Height Of Unit
16.25ft in
I
Max Cutting Height
36.75ft in
J
Max Loading Height
24.08ft in
K
Max Reach Along Ground
37.75ft in
M
Max Digging Depth
23.33ft in
Boom/Stick Option (Hex) 4
22ft. 4in. 6.8m Mass Excavating Boom w/ 9ft. 6in. 2.9m Arm
Max Vertical Wall Dig Depth
17.33ft in
Dimensions
E
Ground Clearance
2.83ft in
G
Height To Top Of Cab
11.33ft in
B
Width To Outside Of Tracks
13.75ft in
D
Length Of Track On Ground
15.1ft in
H
Tail Swing Radius
12.17ft in
Removal Counterweight Clearance
5ft in
Undercarriage
F
Track Gauge
10.83ft in
N
Shoe Size
36in
Number Of Carrier Rollers Per Side
3
Max Travel Speed
3mph
Ground Pressure
10.1psi
Number Of Track Rollers Per Side
8
Number Of Shoes Per Side
47
Drawbar Pull
101666lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2353
Engine Model
AH-6WG1XYSA-02
Net Power
463hp
Power Measured @
1800rpm
Displacement
957cu in
Aspiration
Turbocharged w/ charge cooler
Operational
Operating Weight
152190lb
Fuel Capacity
238gal
Cooling System Fluid Capacity
14.7gal
Hydraulic System Fluid Capacity
190.2gal
Engine Oil Capacity
13.6gal
Operating Voltage
24V
Swing Drive Fluid Capacity
4.8gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
4975psi
Hydraulic Pump Flow Capacity
120gal/min
Swing Mechanism
Swing Torque
142839lb ft
Swing Speed
9.5rpm
Buckets
Reference Bucket Capacity
4.1yd3
Minimum Bucket Capacity
2.4yd3
Maximum Bucket Capacity
5.9yd3
