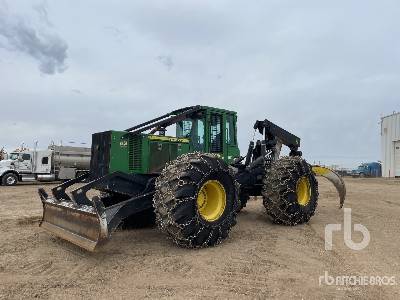

John Deere 648G Skidder

John Deere 648G Skidder Specs front
John Deere 648G Skidder Specs front
John Deere 648G Skidder Specs back
John Deere 648G Skidder Specs back
John Deere 648G Skidder Specs extended
John Deere 648G Skidder Specs extended
Units

Dimensions

Dimensions

A

Overall Length

23.73 ft in

A

Overall Length

24.1 ft in

A

Overall Length

23.73 in

B

Overall Width

10.21 ft in

C

Height to Top of Cab

9.95 ft in

D

Wheelbase

11.26 ft in

E

Ground Clearance

1.69 ft in

F

Max Height of Boom

10.49 ft in

F

Max Height of Boom

12.08 ft in

G

Height of Grapple from Ground

2.98 ft in

G

Height of Grapple from Ground

4.52 ft in

H

Reach of Grapple at Ground Level

5.04 ft in

H

Reach of Grapple at Ground Level

7.36 ft in

I

Tong Opening at Tips

9.59 ft in

I

Tong Opening at Tips

9.59 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Engine Model

6068T

Gross Power

157 hp

Net Power

151 hp

Power Measured @

2200 rpm

Peak Torque

451 lb ft

Torque Measured @

1350 rpm

Displacement

414 cu in

Aspiration

turbocharged

Operational

Operating Weight

26639 lb

Fuel Capacity

70 gal

Cooling System Fluid Capacity

7.6 gal

Engine Oil Capacity

5 gal

Front Diff Fluid Capacity

4.5 gal

Rear Diff Fluid Capacity

7.6 gal

Transmission Fluid Capacity

7.8 gal

Hydraulic System Fluid Capacity

11 gal

Operational Voltage

12 V

Alternator Supplied Amperage

95 amps

Axle Oscillation

30 degrees

Steering Angle

90 degrees

Tire Size

28L-26

Transmission

Transmission Type

planetary

Number of Forward Gears

8

Number of Reverse Gears

4

Max Speed - Forward

15.7 mph

Max Speed - Reverse

5.6 mph

Hydraulic

Pump Type

piston

Pump Flow

38 gal/min

Relief Valve Pressure

3000 psi

Dimensions

Overall Width

10.3 ft in

Height to Top of Cab

10 ft in

Max Blade Height

51.6 in

Wheelbase

11.3 ft in

Ground Clearance

1.7 ft in

Overall Length

23.8 in

Height of Grapple From Ground

3 ft in

Reach of Grapple at Ground Level

7.4 ft in

Max Height of Boom

10.5 ft in

Tong Opening at Tips

9.6 ft in

Grapple Capacity - tongs tip to tip

10.5 ft2

Overall Length

24.1 ft in

Height of Grapple From Ground

4.6 ft in

Reach of Grapple at Ground Level

5.1 ft in

Max Height of Boom

12.1 ft in

Tong Opening at Tips

9.6 in

Grapple Capacity - tongs tip to tip

10.5 ft2

Overall Length

23.8 ft in

Drum Diameter

8 in

Cable Width

0.7 in

Drum Capacity at Cable Width

254 ft in

Max Line Pull - bare drum

41860 lb

Max Line Speed

146 ft/min
