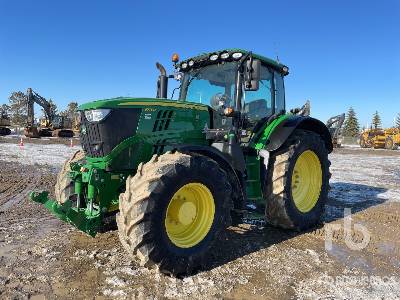

John Deere 6175R 4WD Tractor
Dimensions
Dimensions
Wheelbase
110.2in
Approx. Shipping Weight
17200lb
Front Axle Clearance
23.9in
Front Tread Range
1524 to 2235 mm 60 to 88 in.
Limited Slip Differential
Yes
Unballasted Operating Weight
17200lb
Specifications
Engine
Engine Manufacturer
John Deere PowerTech PVS
Cylinder Liners
Wet sleeve
Fuel Tank Capacity
87.1gal
Displacement
415cu in
Aspiration
Single variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Underhood Muffler
Yes
Power Take-Off(Pto)
Standard
1-3/8 in., 540/1000 reversible shaft
Optional
1-3/8-in. 540/540E/1000 reversible shaft or 1-3/8-in. 540E/1000/1000E reversible shaft
Pto Actuation
Electrohydraulic
Performance
Advertised Engine
175hp
Advertised Pto
104 @ 2100 kW 140 @ 2100 PTO hp
Transmission
Standard Transmission; Forward/Reverse
20-speed AutoQuad PLUS ECO transmission 40 km/h 20-speed AutoQuad PLUS ECO transmission 25 mph
Optional Transmission; Forward/Reverse
16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (50), John Deere Infinitely Variable Transmission (IVT) (0.050 to 42), or John Deere IVT (0.050 to 50), DirectDrive ECO transmission (40) 24X24 km/h 16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (31), John Deere Infinitely Variable Transmission (IVT) (0.030 to 26), or John Deere IVT (0.030 to 31), DirectDrive ECO transmission (25) 24X24 mph
Clutch, Wet/Dry
Wet
Creeper
Included with IVT
Reverser
Left-hand base
On-The-Go Shifting (Yes/No/Partial)
Yes
Tires
Mfwd
Front 420/90R30Rear 480/80R46
Hydraulic
Pump Rated Output 1
41gal/min
Maximum Operating Pressure
2900psi
Remote Control Valves Available
3-450 Series Mechanical SCVs standard, 3 to 4 electrohydraulic SCVs; 2 or 4 mechanical SCVs are optional
Hitch Draft Control Load Sense Type
Electrohydraulic
Hitch Category (Sae Designation)
Category 3/3N
Sensing Type
Electronic lower link
Joystick Scv Control
Mechanical or electronic
Hydraulic Type
Closed-center, pressure/flow compensated
Hitch Lift Cap. Lb (Kg) @24 In. Bhnd Lift Pt.
Standard 3-450 Series Mechanical SCVs standard, 3 to 4 electrohydraulic SCVs; 2 or 4 mechanical SCVs are optionalOptional N/A
Final Drive
Final Drive Type
Inboard planetary three pinion
Differential Controls
Electrohydraulic
Availability
\"Front YesFront & Rear Yes\"
Engage On-The-Go Rear Differential Lock
Yes
Axle Type
Rack and pinion
Brakes, Type And Control
Hydraulic wet disk
Operator Station
Rollover Protective Structure
Rigid - Foldable - Telescopic N/APlatform - Flat/Straddle N/AGearshift Location - Console/Floor N/A
