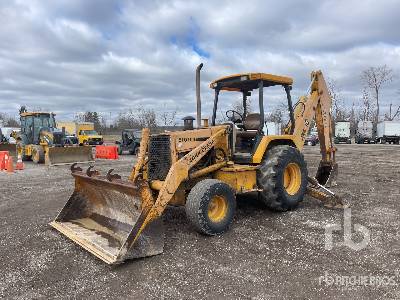

John Deere 510D Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

12.58ft in

K

Reach From Swivel - Std

19.93ft in

L

Dig Depth - Std

16.68ft in

M

Reach at Load Height - Std

23.67ft in

Dimensions

A

Transport Length

23.33ft in

B

Transport Width

7.68ft in

C

Transport Height

12.58ft in

D

Wheelbase

6.89ft in

E

Ground Clearance

1.09ft in

Loader

G

Clearance at Max Dump Height

8.75ft in

H

Reach at Max Dump Height

2.43ft in

I

Dig Depth

4in


Specifications

Engine

Engine Make

2240

Engine Model

4045T

Gross Power

100hp

Net Power

95hp

Power Measured @

2200rpm

Net Torque Rise

25%

Net Max Torque

268lb ft

Aspiration

Turbocharged

Displacement

276cu in

Operational

Max Weight

16000lb

Fuel Capacity

34gal

Hydraulic System Fluid Capacity

21gal

Oil System Fluid Capacity

2.3gal

Cooling System Fluid Capacity

4.3gal

Transmission Fluid Capacity

21gal

Turning Radius

11.7ft in

Tire Size Front - 2wd / 4wd

11L-16,12PR F3

Rear Tires Size 2wd/4wd

19.5L-24,12PR R4

Operating Voltage

12V

Alternator Supplied Amperage

95amps

Transmission

Transmission Type

4-speed helical gear, synchronized in all four gears, collar shift transmission with hydraulic reverser

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

19.7mph

Max Speed Reverse

22.6mph

Backhoe

Dig Depth - Std

16.7ft in

Dig Depth - Ext

20.9ft in

Reach From Swivel - Std

20ft in

Reach From Swivel - Ext

24ft in

Bucket Dig Force - Std

11100lb

Bucket Dig Force - Ext

11230lb

Load at Max Lift - Std

6780lb

Load at Max Lift - Ext

3616lb

Load Height - Std

12.6ft in

Load Height - Ext

15ft in

Reach at Load Height - Std

23.7ft in

Reach at Load Height - Ext

27.7ft in

Loader

Bucket Capacity

1.7yd3

Bucket Width

92in

Bucket Breakout Force

9900lb

Lift Capacity at Full Height

7300lb

Clearance at Max Dump Height

8.8ft in

Reach at Max Dump Height

2.5ft in

Dig Depth

4in

Hydraulic

Pump Type

Radial pistons

Pump Flow Capacity

35gal/min

Relief Valve Pressure

2755psi

Dimensions

Transport Length

23.4ft in

Transport Width

7.7ft in

Transport Height

12.6ft in

Height to Top of Suspended Cab

9.2ft in

Wheelbase

6.9ft in

Ground Clearance

1.1ft in
