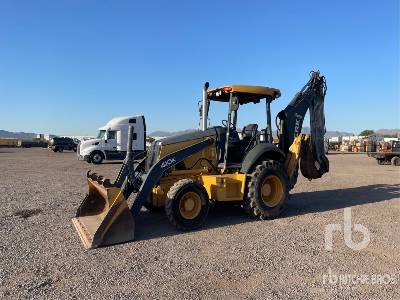

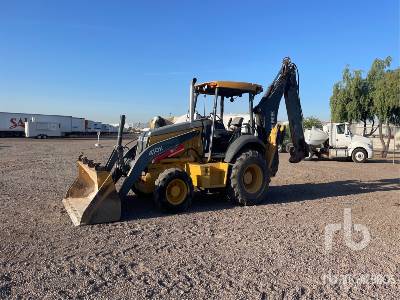

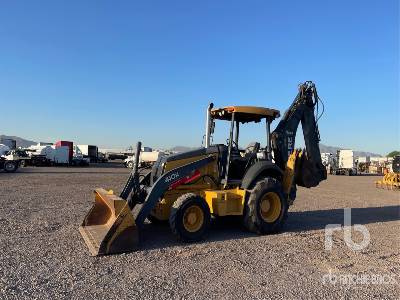

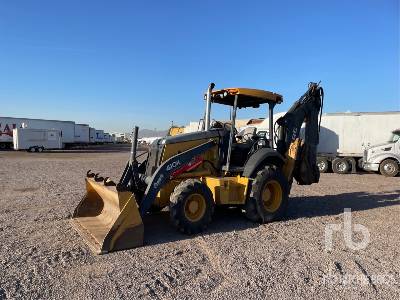

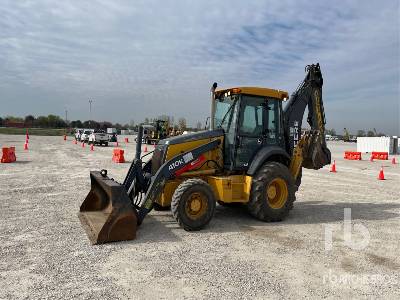

John Deere 410K Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

12.6ft in

K

Reach From Swivel - Std

19.8ft in

L

Dig Depth - Std

15.1ft in

Dimensions

A

Transport Length

23.11ft in

B

Transport Width

7.7ft in

C

Transport Height

12.11ft in

D

Wheelbase

6.11ft in

E

Ground Clearance

1.17ft in

Loader

G

Clearance at Max Dump Height

8.1ft in

H

Reach at Max Dump Height

2.5ft in

I

Dig Depth

6.7in


Specifications

Engine

Engine Make

John Deere PowerTech Plus

Engine Model

4045HT063

Net Power

107.3hp

Power Measured @

2000rpm

Torque Measured @

1400rpm

Net Torque Rise

35%

Net Max Torque

317.2lb ft

Aspiration

Turbocharged

Bore

3.6in

Stroke

29.3in

Displacement

274.7cu in

Operational

Operating Weight 2wd

16391.4lb

Max Weight

19061.2lb

Fuel Capacity

41gal

Hydraulic System Fluid Capacity

24.6gal

Oil System Fluid Capacity

3.5gal

Cooling System Fluid Capacity

8.7gal

Transmission Fluid Capacity

4gal

Front Axle Fluid Capacity

1.8gal

Rear Axle Fluid Capacity

4.8gal

Tire Size Front - 2wd / 4wd

14.5/75-16.1 SL F-3

Rear Tires Size 2wd/4wd

21L-24 R-4

Operating Voltage

12V

Alternator Supplied Amperage

120amps

Transmission

Transmission Type

5 speed, helical-cut gears, full PowerShift

Number of Forward Gears

5

Number of Reverse Gears

3

Max Speed - Forward

25mph

Max Speed Reverse

13.2mph

Backhoe

Dig Depth - Std

15.1ft in

Dig Depth - Ext

20ft in

Reach From Swivel - Std

19.8ft in

Reach From Swivel - Ext

23.8ft in

Bucket Dig Force - Std

15230lb

Load Height - Std

12.6ft in

Load Height - Ext

15.6ft in

Loader

Bucket Capacity

1.4yd3

Bucket Width

92.1in

Bucket Breakout Force

10300lb

Lift Capacity at Full Height

7200.3lb

Clearance at Max Dump Height

8.1ft in

Reach at Max Dump Height

2.5ft in

Dig Depth

6.7in

Hydraulic

Pump Type

Pressure compensated load sensing

Pump Flow Capacity

42gal/min

Relief Valve Pressure

3625psi

Dimensions

Transport Length

23.2ft in

Transport Width

7.7ft in

Transport Height

12.2ft in

Height to Top of Suspended Cab

9.3ft in

Wheelbase

6.2ft in

Ground Clearance

1.2ft in
