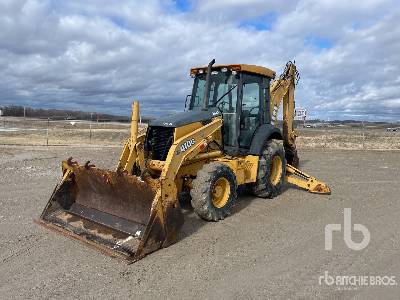

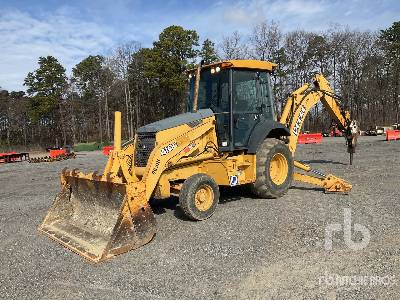

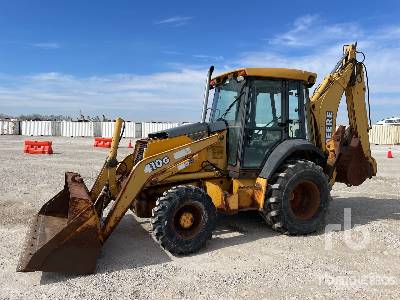

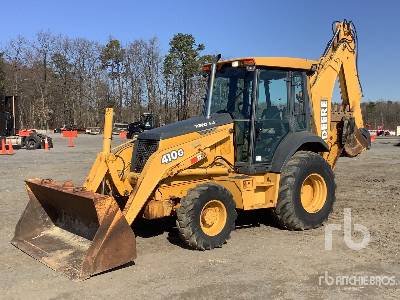

John Deere 410G Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

12.5ft in

K

Reach From Swivel - Std

19.68ft in

L

Dig Depth - Std

15.83ft in

M

Reach at Load Height - Std

23.33ft in

Dimensions

A

Transport Length

23.92ft in

B

Transport Width

7.55ft in

C

Transport Height

12.83ft in

D

Wheelbase

6.89ft in

E

Ground Clearance

1.17ft in

Loader

G

Clearance at Max Dump Height

12.33ft in

H

Reach at Max Dump Height

2.96ft in

I

Dig Depth

4.2in


Specifications

Engine

Engine Make

2240

Engine Model

4045T

Net Power

96hp

Power Measured @

2100rpm

Torque Measured @

1400rpm

Net Torque Rise

23%

Net Max Torque

279lb ft

Aspiration

Turbocharged

Operational

Operating Weight 2wd

1628lb

Operating Weight 4wd

1262lb

Max Weight

15000lb

Fuel Capacity

36gal

Hydraulic System Fluid Capacity

26gal

Oil System Fluid Capacity

3.5gal

Cooling System Fluid Capacity

4.3gal

Transmission Fluid Capacity

4gal

Front Axle Fluid Capacity

2gal

Rear Axle Fluid Capacity

4.2gal

Turning Radius

11.7ft in

Tire Size Front - 2wd / 4wd

11L-16 F3

Rear Tires Size 2wd/4wd

19.5L-24 R4

Operating Voltage

12V

Alternator Supplied Amperage

90amps

Transmission

Transmission Type

4-speed, helical cut gear, full power shifted transmission with hydraulic reverser

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

20.5mph

Max Speed Reverse

16.1mph

Backhoe

Dig Depth - Std

15.9ft in

Dig Depth - Ext

20.5ft in

Reach From Swivel - Std

19.7ft in

Reach From Swivel - Ext

23.7ft in

Bucket Dig Force - Std

14801lb

Bucket Dig Force - Ext

14801lb

Load Height - Std

12.5ft in

Load Height - Ext

15.5ft in

Reach at Load Height - Std

23.4ft in

Reach at Load Height - Ext

27.4ft in

Loader

Bucket Capacity

1.3yd3

Bucket Width

36in

Bucket Breakout Force

10210lb

Lift Capacity at Full Height

7340lb

Clearance at Max Dump Height

12.4ft in

Reach at Max Dump Height

3ft in

Dig Depth

4.2in

Hydraulic

Pump Type

Axial-piston, PCLS system

Pump Flow Capacity

43gal/min

Relief Valve Pressure

3625psi

Dimensions

Transport Length

24ft in

Transport Width

7.6ft in

Transport Height

12.9ft in

Height to Top of Suspended Cab

9.3ft in

Wheelbase

6.9ft in

Ground Clearance

1.2ft in
