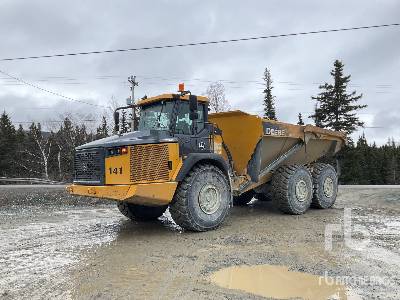

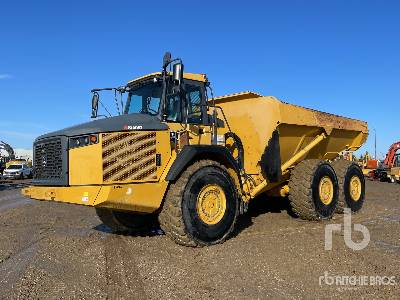

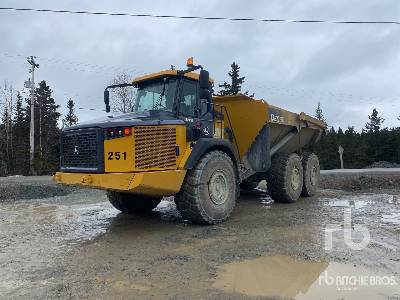

John Deere 410E Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
MODEL.UNITS

Dimensions

Dimensions

A

Overall Length

35.47ft in

B

Overall Width

11.3ft in

C

Overall Height

12.8ft in

D

Wheelbase

29.2ft in

F

Dump Height

10.1ft in

Width Over Tires

11.19ft in

Approach Angle

26-

Articulation Angle

45

Hoist - Type

Twin, 1-Stage

Max Height

12.67ft in

Power Down

Yes

Turning Radius - Inside

15.2ft in

Turning Radius - Outside

29.2ft in

Turns Lock To Lock

4.2

Dump

H

Dump Angle

70degrees

Raise Time

10sec

Rated Payload

41.1lb

Lower Time

10sec

Capacity - Struck

23.3yd3

Capacity - Heaped

29.7yd3


Specifications

Engine

Engine Make

0

Engine Model

PowerTech 6135

Net Power

443hp

Max Torque

1685lb ft

Driveline

Engine Model

PowerTech 6135

Displacement

823.9cu in

Engine Manufacturer

John Deere

Emission Rating

Tier 4

Rated Speed

1900rpm

Parking Brake Type

Disc - Transmission

Transmission Type

Countershaft

Differential Lock

F: 100 / R: 100

Service Brake Actuation

Hydraulic

Tire Size - Standard

29.5 R25

Rear Suspension - Type

Pivoting Walking Beam

Final Drive

Planetary - Outboard

Retarder - Type

Hydraulic - Transmission

Transmission Manufacturer

ZF

Secondary Steering Type

Ground Driven Pump

Rear Suspension

Rubber Suspension Blocks

Front Suspension - Type

A-Frame

Front Suspension

Nitrogen/Oil-Filled Struts - Auto Levelling

Steering Type

Articulated

Capacities

Fuel Tank - Diesel

160.9gal

Struck Capacity

23.3yd3

Heaped Capacity

29.7yd3

Operational

Fuel Capacity

161gal

Tire Size

29.5R25

Description

Fleet Management

Yes

Steering Wheel Adjustment

Fully Adjustable

Telematics Available

Yes

Air Conditioner

Yes

Performance

Gears - Forward / Reverse

8F - 4R

Transmission

Transmission Type

Auto

Number Of Forward Gears

8

Number Of Reverse Gears

4

Max Speed

34mph

Weights

Payload

82157.5lb

Gross Weight

152381.4lb

Net Weight

70223.9lb

Total Empty

70224lb

Total Loaded

152381lb
