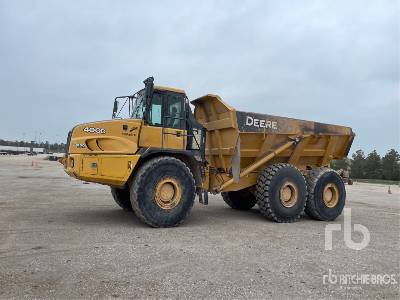

John Deere 400D Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
MODEL.UNITS

Dimensions

Dimensions

A

Overall Length

34.58ft in

B

Overall Width

12.5ft in

C

Overall Height

12.77ft in

D

Wheelbase

17.89ft in

E

Ground Clearance

1.84ft in

F

Dump Height

23.75ft in

G

Dump Ground Clearance

2.17ft in

Dump

H

Dump Angle

70degrees

Lower Time

7.6sec

Rated Payload

81570lb

Capacity - Struck

22.1yd3

Raise Time

13sec

Capacity - Heaped

29.3yd3


Specifications

Engine

Number Of Cylinders

6

Engine Make

2345

Engine Model

OM501LA

Net Power

413hp

Power Measured @

1800rpm

Max Torque

1454lb ft

Torque Measured @

1080rpm

Aspiration

Turbocharged and charge air cooled

Displacement

729cu in

Operational

Fuel Capacity

128gal

Hydraulic System Fluid Capacity

47gal

Cooling System Fluid Capacity

8.9gal

Engine Oil Capacity

8gal

Transmission Fluid Capacity

9gal

Operating Voltage

24V

Alternator Supplied Amperage

80amps

Tire Size

29.5R25

Transmission

Transmission Type

Allison 4500R ORS fully automatic engine

Number Of Forward Gears

6

Number Of Reverse Gears

1

Max Speed

32mph

Weights

Center Axle - Empty

17610%

Front Axle - Empty

32920lb

Rear Axle - Empty

15430lb

Front Axle - Loaded

43340%

Center Axle - Loaded

53270%

Rear Axle - Loaded

50920lb

Total Empty

65960lb

Total Loaded

147530lb
