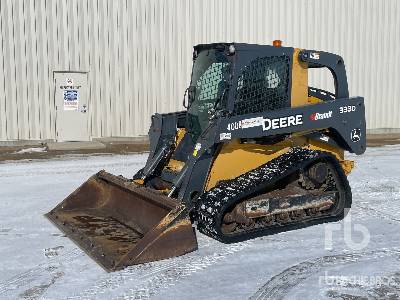

John Deere 333D Multi Terrain Loader

Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Units

Dimensions

Dimensions

B

Width Over Tracks

6.73ft in

E

Ground Clearance

10.44in

H

Reach at Max Lift and Dump

2.69ft in


Specifications

Engine

Number of Cylinders

5

Engine Make

John Deere

Engine Model

E 5030HT

Gross Power

95.4hp

Net Power

89.5hp

Power Measured @

2400rpm

Peak Torque

251.6lb ft

Torque Measured @

1950rpm

Displacement

183.1cu in

Operational

Operating Weight

11109.1lb

Fuel Capacity

29.4gal

Operating Voltage

12V

Alternator Supplied Amperage

70amps

Max Speed - low range

5.3mph

Max Speed - high range

7.9mph

Undercarriage

Ground Pressure

4.6psi

Number of Track Rollers per Side

5

Width of Track

17.8in

Loader

Dump height

8.6ft in

Tipping Load

9425lb

Operating Load

4729lb

Boom breakout force

673527.6lb

Tipping Angle

50degrees

Bucket Breakout Force

13875lb

Hydraulic

Pump Flow

25.1gal/min

Hydraulic Horsepower-Standard Flow

53hp

Dimensions

Overall height

10.5ft in

Dump Angle

45 degress

Turning Radius

7.2ft in

Width Over Tracks

6.8ft in

Length with Bucket

11.9ft in

Length with out Bucket

9.9ft in

Ground Clearance

10.5in

Reach at Max Lift and Dump

2.7ft in


Compare similar models

Manufacturer / Model

Net Power

Operating Weight

Operating Load

Net Power

90 hp

Operating Weight

10139 lb

Operating Load

4561 lb

Net Power

90 hp

Operating Weight

10730 lb

Operating Load

4150 lb

Net Power

83 hp

Operating Weight

10925 lb

Operating Load

3857 lb
`
