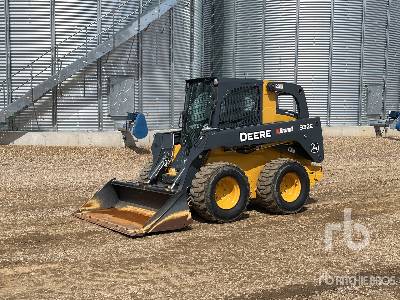

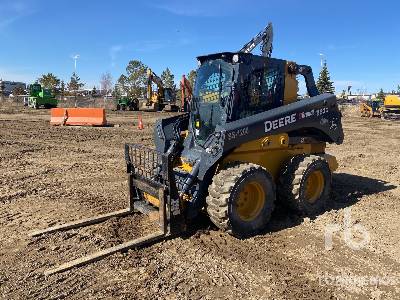

John Deere 332 Skid Steer Loader

John Deere 332 Skid Steer Loader Specs front
John Deere 332 Skid Steer Loader Specs front
John Deere 332 Skid Steer Loader Specs side
John Deere 332 Skid Steer Loader Specs side
John Deere 332 Skid Steer Loader Specs back
John Deere 332 Skid Steer Loader Specs back
Units

Dimensions

Dimensions

A

Length with Bucket

11.55 ft in

B

Width Over Tires

6.43 ft in

C

Height to Top of Cab

6.91 ft in

D

Wheelbase

4.05 ft in

E

Ground Clearance

9.49 in

F

Length w/o Bucket

9.63 ft in

G

Clearance at Max Lift and Dump

8.51 ft in

H

Reach at Max Lift and Dump

32.01 in


Specifications

Engine

Number of Cylinders

5

Engine Make

2240

Engine Model

5030HW

Gross Power

91 hp

Net Power

85 hp

Power Measured @

2800 rpm

Displacement

186 cu in

Aspiration

turbocharged

Operational

Operational Weight

9160 lb

Fuel Capacity

24 gal

Max Speed

11.2 mph

Tire Size

14x17.5 14 PR

Operating Voltage

12 V

Alternator Supplied Amperage

70 amps

Loader

Breakout Force

11600

Operating Load Rating

3175 lb

Tipping Angle

6350 degrees

Bucket Capacity

0.7 yd3

Hydraulic

Pump Flow Capacity

24.1 gal/min

Relief Valve Pressure

3100 psi

Dimensions

Length with Bucket

11.6 ft in

Length w/o Bucket

9.7 ft in

Width Over Tires

6.5 ft in

Height to Top of Cab

7 ft in

Clearance at Max Lift and Dump

8.6 ft in

Wheelbase

4.1 ft in

Ground Clearance

9.5 in

Reach at Max Lift and Dump

32.1 in

Turning Radius from Center - inc bucket

83.8 in
