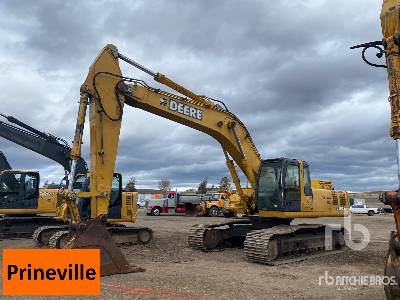

John Deere 330C LC Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
36.39ft in
C
Shipping Height Of Unit
11.39ft in
I
Max Cutting Height
32.26ft in
J
Max Loading Height
22.68ft in
K
Max Reach Along Ground
33.8ft in
L
Max Vertical Wall Digging Depth
18.18ft in
M
Max Digging Depth
22.22ft in
Boom/Stick Option (Hex) 1
Arm Length 8ft. 9in. (2.66m )
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
36ft in
I
Max Cutting Height
33.42ft in
C
Shipping Height Of Unit
10.6ft in
J
Max Loading Height
23.67ft in
K
Max Reach Along Ground
35.58ft in
L
Max Vertical Wall Digging Depth
21ft in
M
Max Digging Depth
23.96ft in
Boom/Stick Option (Hex) 2
Arm Length 10ft.6in. (3.2m )
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
36.26ft in
I
Max Cutting Height
34.72ft in
J
Max Loading Height
24.87ft in
C
Shipping Height Of Unit
11.72ft in
K
Max Reach Along Ground
38.06ft in
L
Max Vertical Wall Digging Depth
23.92ft in
M
Max Digging Depth
26.58ft in
Boom/Stick Option (Hex) 3
Arm Length 13ft.1in. (4.0m)
Dimensions
E
Ground Clearance
1.65ft in
G
Height To Top Of Cab
10.31ft in
B
Width To Outside Of Tracks
11.13ft in
D
Length Of Track On Ground
13.29ft in
H
Tail Swing Radius
10.83ft in
Removal Counterweight Clearance
3.81ft in
Undercarriage
N
Shoe Size
31.5in
Number Of Carrier Rollers Per Side
2
Ground Pressure
6.75psi
Drawbar Pull
56086lb
Number Of Shoes Per Side
48
Number Of Track Rollers Per Side
9
Max Travel Speed
3.4mph
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6081H
Net Power
246hp
Power Measured @
2000rpm
Max Torque
802lb ft
Displacement
494cu in
Aspiration
Turbocharger
Torque Measured @
1600rpm
Operational
Operating Weight
72800lb
Fuel Capacity
148gal
Cooling System Fluid Capacity
14.6gal
Hydraulic System Fluid Capacity
85gal
Operating Voltage
24V
Engine Oil Capacity
8gal
Swing Drive Fluid Capacity
3.7gal
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4624psi
Hydraulic Pump Flow Capacity
77gal/min
Swing Mechanism
Swing Speed
11.6rpm
Swing Torque
75172.4lb ft
Buckets
Reference Bucket Capacity
2.4yd3
Minimum Bucket Capacity
2.5yd3
Maximum Bucket Capacity
1.3yd3
