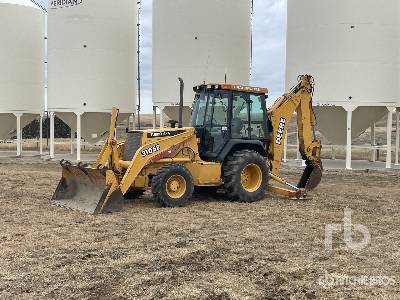

John Deere 315D Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

11.92ft in

K

Reach From Swivel - Std

17.75ft in

L

Dig Depth - Std

14.08ft in

M

Reach at Load Height - Std

21.75ft in

Dimensions

A

Transport Length

18.48ft in

B

Transport Width

7.35ft in

C

Transport Height

12.24ft in

D

Wheelbase

6.89ft in

E

Ground Clearance

1.15ft in

Loader

G

Clearance at Max Dump Height

10.92ft in

H

Reach at Max Dump Height

2.34ft in

I

Dig Depth

4in


Specifications

Engine

Number of Cylinders

4

Engine Make

2240

Engine Model

4039D

Net Power

70hp

Gross Power

74hp

Power Measured @

2200rpm

Torque Measured @

1200rpm

Net Torque Rise

20%

Net Max Torque

215lb ft

Aspiration

Naturally aspirated

Displacement

239cu in

Operational

Operating Weight 2wd

220lb

Operating Weight 4wd

430lb

Max Weight

14000lb

Fuel Capacity

28gal

Hydraulic System Fluid Capacity

21gal

Oil System Fluid Capacity

2.3gal

Cooling System Fluid Capacity

4.3gal

Transmission Fluid Capacity

1.9gal

Front Axle Fluid Capacity

6gal

Turning Radius

11.8ft in

Tire Size Front - 2wd / 4wd

11L-16,12PR F3/10.5/-18,8PRTG2

Rear Tires Size 2wd/4wd

16.9-28,8PR, R4

Operating Voltage

12V

Alternator Supplied Amperage

78amps

Transmission

Transmission Type

4-speed helical gear, synchronized in all four gears, collar shift with hydraulic reverser

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

25.3mph

Max Speed Reverse

22.8mph

Backhoe

Dig Depth - Std

14.1ft in

Dig Depth - Ext

14.5ft in

Reach From Swivel - Std

17.8ft in

Reach From Swivel - Ext

21.4ft in

Bucket Dig Force - Std

11570lb

Bucket Dig Force - Ext

11530lb

Load Height - Std

12ft in

Load Height - Ext

14.5ft in

Reach at Load Height - Std

21.8ft in

Reach at Load Height - Ext

25.4ft in

Loader

Bucket Capacity

1.3yd3

Bucket Width

92in

Bucket Breakout Force

9350lb

Lift Capacity at Full Height

5700lb

Clearance at Max Dump Height

11ft in

Reach at Max Dump Height

2.4ft in

Dig Depth

4in

Hydraulic

Pump Type

Gear, open center

Pump Flow Capacity

35gal/min

Relief Valve Pressure

2700psi

Dimensions

Transport Length

18.5ft in

Transport Width

7.4ft in

Transport Height

12.3ft in

Height to Top of Suspended Cab

9ft in

Wheelbase

6.9ft in

Ground Clearance

1.2ft in
