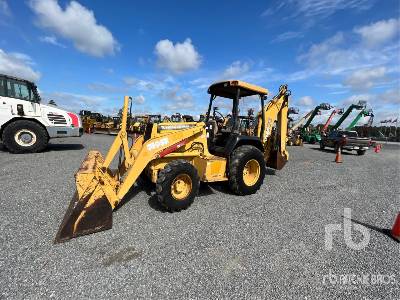

John Deere 310SE Loader Backhoe

John Deere 310SE Loader Backhoe Specs front
John Deere 310SE Loader Backhoe Specs front
John Deere 310SE Loader Backhoe Specs side
John Deere 310SE Loader Backhoe Specs side
John Deere 310SE Loader Backhoe Specs extended
John Deere 310SE Loader Backhoe Specs extended
Units

Dimensions

Backhoe

J

Load Height - Std

11.25 ft in

K

Reach From Swivel - Std

18.25 ft in

L

Dig Depth - Std

14.5 ft in

M

Reach at Load Height - Std

21.75 ft in

Dimensions

A

Transport Length

23.5 ft in

B

Transport Width

7.16 ft in

C

Transport Height

11.52 ft in

D

Wheelbase

6.89 ft in

E

Ground Clearance

1.09 ft in

Loader

G

Clearance at Max Dump Height

11.17 ft in

H

Reach at Max Dump Height

2.99 ft in

I

Dig Depth

7.3 in


Specifications

Engine

Engine Make

2240

Engine Model

4045T

Net Power

80 hp

Gross Power

88 hp

Power Measured @

2200 rpm

Net Torque Rise

42 %

Net Max Torque

271 lb ft

Aspiration

Turbocharged

Displacement

276 cu in

Operational

Operating Weight 2wd

13500 lb

Operating Weight 4wd

13500 lb

Max Weight

13500 lb

Fuel Capacity

36 gal

Hydraulic System Fluid Capacity

24 gal

Oil System Fluid Capacity

2.3 gal

Cooling System Fluid Capacity

4.3 gal

Transmission Fluid Capacity

3.7 gal

Front Axle Fluid Capacity

2.3 gal

Rear Axle Fluid Capacity

3.5 gal

Turning Radius

11.8 ft in

Tire Size Front - 2wd / 4wd

11L-15,8PRF3;11L-16,12PR F3;12.5/80-18,10PR

Rear Tires Size 2wd/4wd

16.9-24,8PR R4;19.5L-24,8PR R4

Operating Voltage

12 V

Alternator Supplied Amperage

65 amps

Backhoe

Dig Depth - Std

14.5 ft in

Dig Depth - Ext

18.5 ft in

Reach From Swivel - Std

18.3 ft in

Reach From Swivel - Ext

22 ft in

Bucket Dig Force - Std

11990 lb

Bucket Dig Force - Ext

12158 lb

Load Height - Std

11.3 ft in

Load Height - Ext

14.1 ft in

Reach at Load Height - Std

21.8 ft in

Reach at Load Height - Ext

25.4 ft in

Transmission

Transmission Type

4-speed , helical cut gear, collar shift transmission synchronized in all gears with hydraulic reverser

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

24.4 mph

Max Speed Reverse

27.2 mph

Loader

Bucket Capacity

1.3 yd3

Bucket Width

92 in

Bucket Breakout Force

8325 lb

Lift Capacity at Full Height

5900 lb

Clearance at Max Dump Height

11.2 ft in

Reach at Max Dump Height

3 ft in

Dig Depth

7.3 in

Hydraulic

Pump Type

Gear, tandem with unloader

Pump Flow Capacity

36 gal/min

Relief Valve Pressure

3000 psi

Dimensions

Transport Length

23.5 ft in

Transport Width

7.2 ft in

Transport Height

11.6 ft in

Wheelbase

6.9 ft in

Ground Clearance

1.1 ft in
