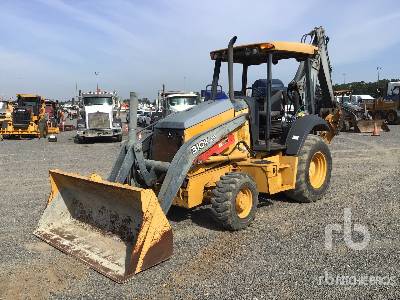

John Deere 310K EP Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

10.11ft in

K

Reach From Swivel - Std

17.11ft in

L

Dig Depth - Std

14.3ft in

Dimensions

A

Transport Length

23.3ft in

B

Transport Width

7.2ft in

C

Transport Height

11.3ft in

D

Wheelbase

6.11ft in

E

Ground Clearance

1.01ft in

Loader

G

Clearance at Max Dump Height

8.1ft in

H

Reach at Max Dump Height

2.58ft in

I

Dig Depth

6.3in


Specifications

Engine

Engine Make

E 4045HT072

Engine Model

John Deere PowerTech

Net Power

52hp

Power Measured @

2000rpm

Torque Measured @

1300rpm

Net Torque Rise

38%

Net Max Torque

224lb ft

Aspiration

Turbocharged

Displacement

274.7cu in

Operational

Max Weight

13913lb

Fuel Capacity

41gal

Hydraulic System Fluid Capacity

23.6gal

Oil System Fluid Capacity

3.5gal

Cooling System Fluid Capacity

8.7gal

Transmission Fluid Capacity

15.1gal

Rear Axle Fluid Capacity

4.8gal

Tire Size Front - 2wd / 4wd

11L-16 F-3

Rear Tires Size 2wd/4wd

19.5L-24 R

Operating Voltage

12V

Transmission

Transmission Type

Full power shift

Number of Forward Gears

4

Number of Reverse Gears

2

Max Speed - Forward

18.6mph

Max Speed Reverse

7.5mph

Backhoe

Dig Depth - Std

14.3ft in

Dig Depth - Ext

17.2ft in

Reach From Swivel - Std

17.1ft in

Reach From Swivel - Ext

21.5ft in

Bucket Dig Force - Std

9350lb

Bucket Dig Force - Ext

9500lb

Load Height - Std

10.2ft in

Load Height - Ext

13.2ft in

Loader

Bucket Capacity

1.1yd3

Bucket Width

86in

Bucket Breakout Force

9350lb

Lift Capacity at Full Height

6600lb

Clearance at Max Dump Height

8.1ft in

Reach at Max Dump Height

2.6ft in

Dig Depth

6.3in

Hydraulic

Pump Type

Open center , gear type , tandem with unloader

Pump Flow Capacity

31.5gal/min

Relief Valve Pressure

3625psi

Dimensions

Transport Length

23.3ft in

Transport Width

7.2ft in

Transport Height

11.3ft in

Height to Top of Suspended Cab

9ft in

Wheelbase

6.2ft in

Ground Clearance

1.1ft in
