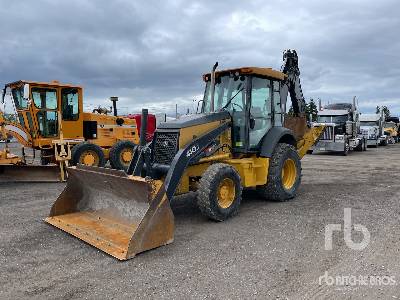

John Deere 300D Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
10.75ft in
K
Reach From Swivel - Std
17.25ft in
L
Dig Depth - Std
13.83ft in
M
Reach At Load Height - Std
20.58ft in
Load Height - Ext
12.75ft in
Bucket Dig Force - Ext
10230lb
Bucket Dig Force - Std
10230lb
Dig Depth - Ext
17.68ft in
Reach At Load Height - Ext
24.25ft in
Load At Max Lift - Ext
1390lb
Load At Max Lift - Std
2420lb
Reach From Swivel - Ext
20.83ft in
Dimensions
A
Transport Length
22.5ft in
B
Transport Width
7.55ft in
C
Transport Height
12ft in
D
Wheelbase
6.89ft in
E
Ground Clearance
1.09ft in
Height To Top Of Suspended Cab
8.75ft in
Loader
G
Clearance At Max Dump Height
8.83ft in
H
Reach At Max Dump Height
2.5ft in
I
Dig Depth
4in
Bucket Breakout Force
6700lb
Bucket Width
84in
Bucket Capacity
1yd3
Lift Capacity At Full Height
4630lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2240
Engine Model
4039D
Net Power
60hp
Gross Power
63hp
Power Measured @
2200rpm
Net Max Torque
172lb ft
Displacement
239cu in
Operational
Operating Weight 2wd
12200lb
Fuel Capacity
28gal
Operating Weight 4wd
12200lb
Max Weight
12200lb
Hydraulic System Fluid Capacity
16gal
Oil System Fluid Capacity
2.3gal
Cooling System Fluid Capacity
4.3gal
Transmission Fluid Capacity
1.9gal
Turning Radius
12ft in
Tire Size Front - 2wd / 4wd
11L-15,8PR,I-1A;12-16.5,8PR
Rear Tires Size 2wd/4wd
16.9-24,8PR R4;17.5L-24,8PR R4
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Transmission
Transmission Type
4-speed helical gear, synchronized collar shift with hydraulic reverser
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
20.1mph
Max Speed Reverse
18mph
Hydraulic
Pump Type
Gear
Pump Flow Capacity
24gal/min
Relief Valve Pressure
2700psi
