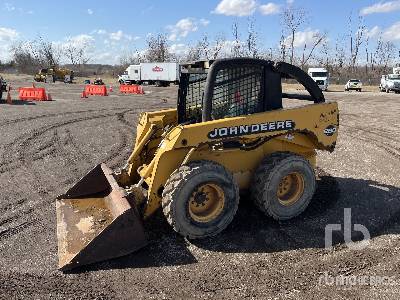

John Deere 260 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
MODEL.UNITS

Dimensions

Dimensions

A

Length With Bucket

11.5ft in

B

Width Over Tires

6.35ft in

E

Ground Clearance

11in

C

Height To Top Of Cab

6.91ft in

D

Wheelbase

3.97ft in

F

Length W/O Bucket

9.59ft in

G

Clearance At Max Lift And Dump

8.51ft in

H

Reach At Max Lift And Dump

32in

Turning Radius From Center - Machine Rear

69in

Turning Radius From Center - Inc Bucket

83.7in


Specifications

Engine

Number Of Cylinders

3

Engine Make

2240

Engine Model

3029T

Gross Power

72.4hp

Net Power

69hp

Power Measured @

2400rpm

Displacement

179cu in

Operational

Operational Weight

8250lb

Fuel Capacity

20gal

Cooling System Fluid Capacity

2.9gal

Hydraulic System Fluid Capacity

9gal

Max Speed

12mph

Operating Speed

7.1mph

Tire Size

14x17.5 SKS. 12PR

Operating Voltage

12V

Alternator Supplied Amperage

55amps

Loader

Breakout Force

7500lb

Operating Load Rating

2400lb

Tipping Angle

5000degrees

Hydraulic

Pump Type

3-spoon open center

Pump Flow Capacity

33.1gal/min

Relief Valve Pressure

3100psi


MODEL.COMPARESIMILARM

MODEL.MANUFACTURERMOD

Net Power

Operating Load Rating

Operational Weight

Net Power

69 hp

Operating Load Rating

2400 lb

Operational Weight

8250 lb

Net Power

69 hp

Operating Load Rating

2400 lb

Operational Weight

8057 lb

Net Power

70 hp

Operating Load Rating

2500 lb

Operational Weight

8390 lb
