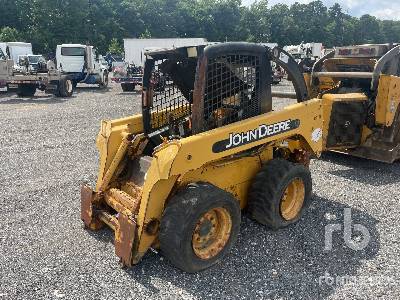

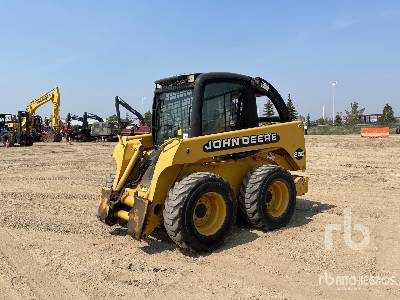

John Deere 250 Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
10.49ft in
B
Width Over Tires
5.83ft in
E
Ground Clearance
9.6in
C
Height To Top Of Cab
6.4ft in
D
Wheelbase
3.53ft in
F
Length W/O Bucket
8.51ft in
G
Clearance At Max Lift And Dump
7.52ft in
H
Reach At Max Lift And Dump
28.1in
Turning Radius From Center - Machine Rear
61.4in
Turning Radius From Center - Inc Bucket
78.91in
Specifications
Engine
Number Of Cylinders
3
Engine Make
2240
Engine Model
3029T
Gross Power
64.4hp
Net Power
61hp
Power Measured @
2400rpm
Displacement
179cu in
Operational
Operational Weight
6250lb
Fuel Capacity
15gal
Cooling System Fluid Capacity
2.8gal
Max Speed
8.5mph
Hydraulic System Fluid Capacity
6gal
Operating Voltage
12V
Alternator Supplied Amperage
55amps
Loader
Breakout Force
5500lb
Operating Load Rating
1750lb
Tipping Angle
3600degrees
Hydraulic
Pump Type
Hydrostatic
Pump Flow Capacity
17.6gal/min
Relief Valve Pressure
3100psi
