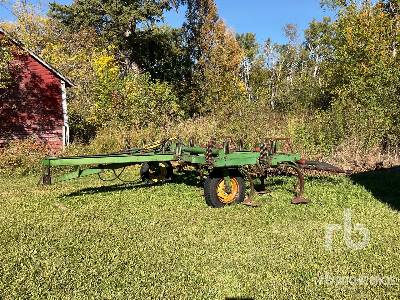

John Deere 2210 Level-lift 20.6ft Cultivator

John Deere 2210 Level-lift 20.6ft Cultivator Specs side
John Deere 2210 Level-lift 20.6ft Cultivator Specs side
John Deere 2210 Level-lift 20.6ft Cultivator Specs back
John Deere 2210 Level-lift 20.6ft Cultivator Specs back
John Deere 2210 Level-lift 20.6ft Cultivator Specs top
John Deere 2210 Level-lift 20.6ft Cultivator Specs top
Units

Dimensions

Dimensions

B

Transport Width

14.33 ft in

C

Transport Height

10.33 ft in


Specifications

Frame

Min Working Width

20.5 ft in

Max Working Width

28.5 ft in

Main Frame Width

10 ft in

Spacing Option 1

4.5 in

Spacing Option 2

6 in

Spacing Option 3

9 in

Operational

Number of Sections

3

Max Speed

8 mph

Max Operating Depth

5 in

Shank Trip Force

150 lb

Harrow

Option 1 Type

5-Bar Spike Tooth Harrow

Spike/Tine Spacing

10 in

Effective Spike/Tine Spacing

2 in

Option 2 Type

3-Bar Coil-Tine Harrow

Spike/Tine Spacing

9 in

Effective Spike/Tine Spacing

3 in

Option 3 Type

2-Bar Coil Tine Harrow with rolling basket

Spike/Tine Spacing

9 in

Effective Spike/Tine Spacing

4.5 in

Basket Diameter

14 in

Bar Size

0.875 in.

Dimensions

Transport Width

14.4 ft in

Transport Height

10.4 ft in

Under Frame Clearance

24 in

PTO Power Required per Width Ft.

4 hp


Compare similar models

Manufacturer / Model

Max Operating Depth

PTO Power Required per Width Ft.

Max Operating Depth

5 in

PTO Power Required per Width Ft.

4 hp

Max Operating Depth

5 in

PTO Power Required per Width Ft.

4 hp

Max Operating Depth

5 in

PTO Power Required per Width Ft.

4 hp
