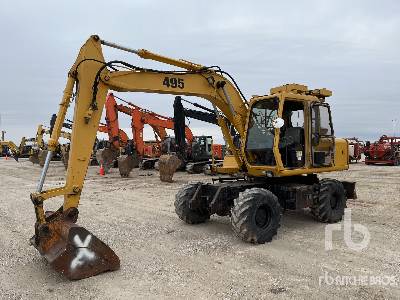

John Deere 220DW Mobile Excavator

John Deere 220DW Mobile Excavator Specs front
John Deere 220DW Mobile Excavator Specs front
John Deere 220DW Mobile Excavator Specs side
John Deere 220DW Mobile Excavator Specs side
John Deere 220DW Mobile Excavator Specs extended
John Deere 220DW Mobile Excavator Specs extended
Units

Dimensions

Boom/Stick Option (MEX) 1

A

Shipping Length of Unit

31.83 ft in

C

Shipping Height of Unit

9.81 ft in

I

Max Cutting Height

33.44 ft in

J

Max Loading Height

24.12 ft in

K

Max Reach Along Ground

32.68 ft in

L

Max Vertical Wall Dig Depth

18.38 ft in

M

Max Digging Depth

20.64 ft in

Boom/Stick Option (MEX) 2

A

Shipping Length of Unit

30.58 ft in

C

Shipping Height of Unit

11.13 ft in

I

Max Cutting Height

34.65 ft in

J

Max Loading Height

25.04 ft in

K

Max Reach Along Ground

31.99 ft in

L

Max Vertical Wall Dig Depth

17.23 ft in

M

Max Digging Depth

19.95 ft in

Dimensions

B

Overall Width

8.96 in

D

Wheelbase

9.03 ft in

E

Ground Clearance

1.09 ft in

F

Overall Width - Outriggers Down

11.29 ft in

G

Height to Top of Cab

10.41 ft in

H

Tail Swing Radius

9.03 ft in

N

Upper Structure Clearance

4.04 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2353

Engine Model

4HK1X, Tier III certified

Net Power

159 hp

Power Measured @

2000 rpm

Displacement

317 cu in

Aspiration

turbocharged and intercooled

Operational

Operating Weight

49888.5 lb

Fuel Capacity

93.8 gal

Cooling System Fluid Capacity

6.9 gal

Engine Oil Capacity

6.1 gal

Front Diff Fluid Capacity

2.6 gal

Rear Diff Fluid Capacity

3.5 gal

Hydraulic System Fluid Capacity

89.9 gal

Operational Voltage

24 V

Alternator Supplied Amperage

50 amps

Hydraulic System Relief Valve Pressure

4975 psi

Hydraulic Pump Type

Variable Axial-Piston

Hydraulic Pump Flow Capacity

99.9 gal/min

Oscillating Axle Angle

7 degrees

Tire Size

10.00-20, 16 PR

Swing Mechanism

Swing Speed

12.2 rpm

Swing Torque

43789 lb ft

Transmission

Transmission Type

Automatic shift

Number of Forward Gears

2

Number of Reverse Gears

2

Max Travel Speed

23.4 mph

Buckets

Reference Bucket Capacity

1 yd3

Minimum Bucket Capacity

0.8 yd3

Maximum Bucket Capacity

1.5 yd3

Boom/Stick Option (MEX) 1

Boom/Stick Option (MEX) 1

Mono Boom 18\' 8\" (5680mm) / Stick 9\\\'7\\\"(2910mm)

Shipping Height of Unit

9.9 ft in

Shipping Length of Unit

31.9 ft in

Max Digging Depth

20.7 ft in

Max Reach Along Ground

32.7 ft in

Max Cutting Height

33.5 ft in

Max Loading Height

24.2 ft in

Max Vertical Wall Dig Depth

18.4 ft in

Boom/Stick Option (MEX) 2

Boom/Stick Option (MEX) 2

2-Piece Boom / Stick 9\'7\" (2910mm)

Shipping Height of Unit

11.2 ft in

Shipping Length of Unit

30.6 ft in

Max Digging Depth

20 ft in

Max Reach Along Ground

32 ft in

Max Cutting Height

34.7 ft in

Max Loading Height

25.1 ft in

Max Vertical Wall Dig Depth

17.3 ft in

Dimensions

Overall Width

9 in

Overall Width - Outriggers Down

11.3 ft in

Height to Top of Cab

10.5 ft in

Wheelbase

9.1 ft in

Ground Clearance

1.1 ft in

Upper Structure Clearance

4.1 ft in

Tail Swing Radius

9.1 ft in
