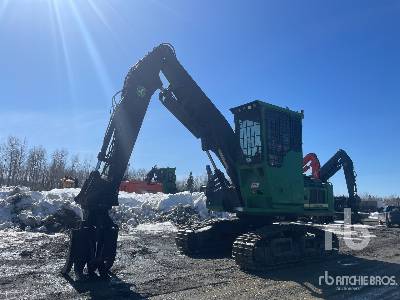

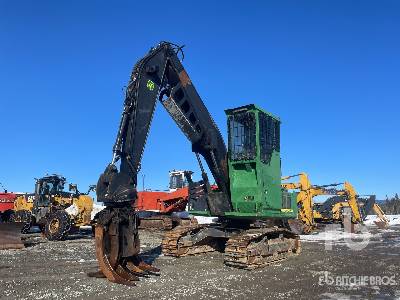

John Deere 2154G Log Loader

John Deere 2154G Log Loader Specs front
John Deere 2154G Log Loader Specs front
John Deere 2154G Log Loader Specs side
John Deere 2154G Log Loader Specs side
John Deere 2154G Log Loader Specs extended
John Deere 2154G Log Loader Specs extended
Units

Dimensions

Dimensions

B

Overall Width

10.83 ft in

D

Length of Track on Ground

12.01 ft in

E

Ground Clearance

2.33 ft in

F

Track Gauge

8.6 ft in


Specifications

Driveline

Engine Model

PowerTech PVS 6.8 L

Displacement

415 cu in

Engine Manufacturer

John Deere

Engine Output

163.7 hp

Engine Output - Net

163.7 hp

Carrier Rollers - Each Side

2

Track Rollers - Each Side

8

Track Shoe Width

23.7 in

Track Shoe Width - Option

2.4 ft in

Capacities

Fuel Tank - diesel

211.4 gal

Hydraulic Tank

36 gal

Description

Reference Stick size

130.8 in

Performance

Travel Speed

3 mph

Ground Bearing Pressure

9.1 psi

Lift capacity at max - reach

12919.1 lb

Slew Torque

54857 lb ft

Pump Flow

62.4 gal/min

Relief Pressure

4974.8 psi

Pump Type

Variable Axial Piston

Boost Pressure

5511.5 psi

Weights

Operating Weight

62505.5 lb

Dimensions

Horizontal Reach

28.9 ft in

Track Gauge

8.6 ft in

Tailswing Radius

10.3 ft in

Overall Track Length

14.6 ft in

Overall Length

388.2 in

Width Over Tracks

10.9 ft in

Transport Height

12.3 ft in

Overall Width

10.9 ft in

Length of Track on Ground

12.1 ft in

Ground Clearance

2.4 ft in

Dump Height

23.9 ft in
