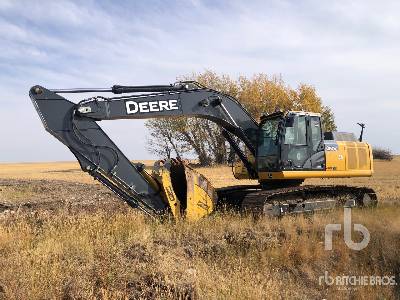

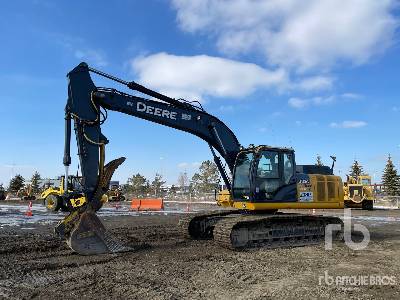

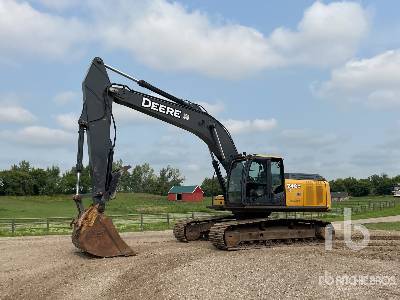

John Deere 2154D Road Builder Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
32.35ft in
C
Shipping Height Of Unit
9.62ft in
I
Max Cutting Height
33.93ft in
K
Max Reach Along Ground
31.63ft in
M
Max Digging Depth
20.25ft in
Dimensions
E
Ground Clearance
2.17ft in
G
Height To Top Of Cab
9.62ft in
B
Width To Outside Of Tracks
2.3ft in
D
Length Of Track On Ground
32.35ft in
H
Tail Swing Radius
10.18ft in
Removal Counterweight Clearance
4.37ft in
Undercarriage
N
Shoe Size
27.56in
Number Of Carrier Rollers Per Side
2
Ground Pressure
7.84psi
Max Travel Speed
3.17mph
Drawbar Pull
49900lb
Number Of Shoes Per Side
48
Number Of Track Rollers Per Side
8
Specifications
Engine
Number Of Cylinders
6
Engine Make
John Deere
Engine Model
6068H
Net Power
159.6hp
Aspiration
Turbocharged
Displacement
415cu in
Operational
Operating Weight
58775.3lb
Fuel Capacity
277.2gal
Cooling System Fluid Capacity
6.9gal
Hydraulic System Fluid Capacity
67.9gal
Engine Oil Capacity
6.9gal
Hydraulic Pump Flow Capacity
62.3gal/min
Swing Mechanism
Swing Speed
12.6rpm
Swing Torque
55026.6lb ft
