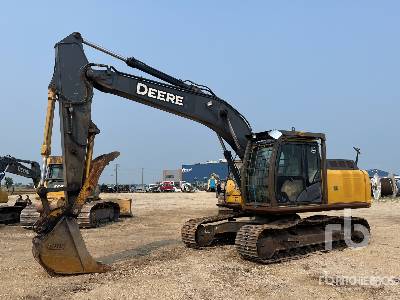

John Deere 210G LC Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
31.73ft in
J
Max Loading Height
22.41ft in
K
Max Reach Along Ground
30.35ft in
L
Max Vertical Wall Digging Depth
17.39ft in
M
Max Digging Depth
20.28ft in
Boom/Stick Option (Hex) 1
Arm - 2.42 m, 7.11 ft in
Boom/Stick Option (Hex) 2
I
Max Cutting Height
32.94ft in
J
Max Loading Height
23.56ft in
K
Max Reach Along Ground
31.99ft in
L
Max Vertical Wall Digging Depth
19.66ft in
M
Max Digging Depth
21.89ft in
Boom/Stick Option (Hex) 2
Arm - 2.91 m, 9.7 ft in
Dimensions
E
Ground Clearance
1.48ft in
G
Height To Top Of Cab
10.44ft in
B
Width To Outside Of Tracks
9.81ft in
D
Length Of Track On Ground
31.99ft in
H
Tail Swing Radius
9.49ft in
Removal Counterweight Clearance
3.38ft in
Undercarriage
N
Shoe Size
23.63in
Number Of Shoes Per Side
49
Number Of Track Rollers Per Side
8
Max Travel Speed
3.42mph
Ground Pressure
7.08psi
Drawbar Pull
45636lb
Number Of Carrier Rollers Per Side
2
Specifications
Engine
Number Of Cylinders
6
Engine Make
John Deere
Engine Model
PVS 6.8L 6068HT106
Net Power
159.6hp
Power Measured @
2000rpm
Aspiration
Turbocharged
Displacement
415cu in
Operational
Operating Weight
16171lb
Fuel Capacity
106.5gal
Cooling System Fluid Capacity
9.4gal
Hydraulic System Fluid Capacity
63.5gal
Engine Oil Capacity
5.5gal
Hydraulic Pump Flow Capacity
112gal/min
Swing Mechanism
Swing Speed
13.3rpm
Swing Torque
50818.1lb ft
