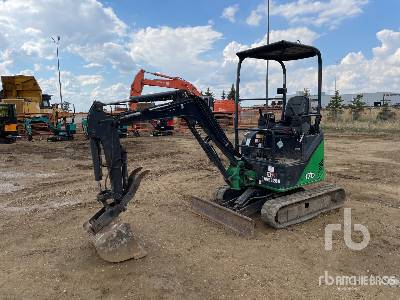

John Deere 17D Mini Excavator

John Deere 17D Mini Excavator Specs front
John Deere 17D Mini Excavator Specs front
John Deere 17D Mini Excavator Specs side
John Deere 17D Mini Excavator Specs side
John Deere 17D Mini Excavator Specs extended
John Deere 17D Mini Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

11.78 ft in

C

Shipping Height of Unit

7.88 ft in

I

Max Cutting Height

11.68 ft in

J

Max Loading Height

8.31 ft in

M

Max Digging Depth

7.12 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

11.95 ft in

C

Shipping Height of Unit

7.88 ft in

I

Max Cutting Height

12.01 ft in

J

Max Loading Height

8.63 ft in

M

Max Digging Depth

7.78 ft in

Dimensions

B

Width to Outside of Tracks

4.2 ft in

D

Length of Track on Ground

3.97 ft in

E

Ground Clearance

0.55 ft in

G

Height to Top of Cab

7.88 ft in

H

Tail Swing Radius

2.22 ft in

Undercarriage

F

Track Gauge

3.45 ft in

N

Shoe Size

9.06 in


Specifications

Engine

Number of Cylinders

3

Engine Make

2348

Engine Model

3TNV70

Net Power

14.8 hp

Power Measured @

2400 rpm

Displacement

52.1 cu in

Aspiration

Natural

Operational

Operating Weight

4173 lb

Fuel Capacity

5.2 gal

Cooling System Fluid Capacity

0.8 gal

Hydraulic System Fluid Capacity

5.3 gal

Engine Oil Capacity

0.9 gal

Alternator Supplied Amperage

40 amps

Hydraulic Pump Flow Capacity

13.5 gal/min

Swing Mechanism

Swing Speed

8.9 rpm

Undercarriage

Shoe Size

9.1 in

Ground Pressure

4.1 psi

Max Travel Speed

2.7 mph

Track Gauge

3.5 ft in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

3\'1\" (930mm) arm

Shipping Height of Unit

7.9 ft in

Shipping Length of Unit

11.8 ft in

Max Digging Depth

7.2 ft in

Max Cutting Height

11.7 ft in

Max Loading Height

8.4 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

3\'8\" (1130mm) arm

Shipping Height of Unit

7.9 ft in

Shipping Length of Unit

12 ft in

Max Digging Depth

7.8 ft in

Max Cutting Height

12.1 ft in

Max Loading Height

8.7 ft in

Dimensions

Width to Outside of Tracks

4.2 ft in

Height to Top of Cab

7.9 ft in

Ground Clearance

0.6 ft in

Removal Counterweight Clearance

1.5 ft in

Tail Swing Radius

2.3 ft in

Length of Track on Ground

4 ft in
