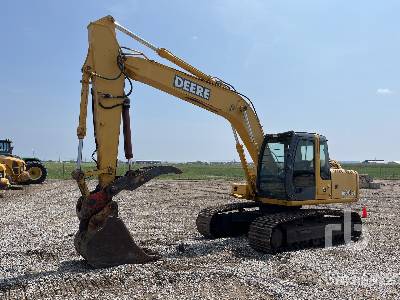

John Deere 160C LC Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
27.99ft in
C
Shipping Height Of Unit
9.45ft in
I
Max Cutting Height
28.67ft in
J
Max Loading Height
20.67ft in
K
Max Reach Along Ground
28.12ft in
L
Max Vertical Wall Digging Depth
16.5ft in
M
Max Digging Depth
19.2ft in
Boom/Stick Option (Hex) 1
Arm Length 8ft. 6in. (2.60m )
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
28.09ft in
I
Max Cutting Height
29.5ft in
C
Shipping Height Of Unit
9.45ft in
J
Max Loading Height
21.42ft in
K
Max Reach Along Ground
29.63ft in
L
Max Vertical Wall Digging Depth
18.25ft in
M
Max Digging Depth
20.87ft in
Boom/Stick Option (Hex) 2
Arm Length 10ft. 2in. (3.10m)
Dimensions
E
Ground Clearance
1.55ft in
G
Height To Top Of Cab
9.45ft in
B
Width To Outside Of Tracks
8.5ft in
D
Length Of Track On Ground
10.18ft in
H
Tail Swing Radius
8.01ft in
Removal Counterweight Clearance
3.29ft in
Undercarriage
N
Shoe Size
23.63in
Number Of Shoes Per Side
43
Ground Pressure
5.46psi
Max Travel Speed
3.3mph
Number Of Track Rollers Per Side
7
Number Of Carrier Rollers Per Side
2
Drawbar Pull
33670lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2240
Engine Model
4045H
Net Power
109hp
Power Measured @
2300rpm
Max Torque
302lb ft
Displacement
276cu in
Aspiration
Turbocharger and air-to-air charge air cooler
Torque Measured @
1400rpm
Operational
Operating Weight
35620.1lb
Fuel Capacity
74gal
Cooling System Fluid Capacity
7.1gal
Hydraulic System Fluid Capacity
44.9gal
Operating Voltage
24V
Engine Oil Capacity
3.7gal
Swing Drive Fluid Capacity
1.2gal
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
78.2gal/min
Swing Mechanism
Swing Speed
13.6rpm
Swing Torque
29850lb ft
Buckets
Reference Bucket Capacity
1.1yd3
Minimum Bucket Capacity
0.7yd3
Maximum Bucket Capacity
1.8yd3
