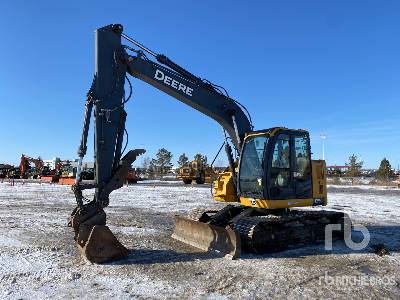

John Deere 135G Midi Excavator
Units
Dimensions
Dimensions
E
Ground Clearance
1.35ft in
H
Tail Swing Radius
4.89ft in
F
Track Gauge
6.53ft in
Digging Reach - Mono Boom
27.53ft in
Dump Height - Mono Boom
22.41ft in
Ground Level Reach - Mono Boom
27.04ft in
Overall Width
8.17ft in
Standard Dipper
8.27ft in
Track Length On Ground
9.45ft in
Transport Height - Maximum
9.42ft in
Transport Length Mono Boom
24.18ft in
Undercarriage Overall Length
11.75ft in
Dig Depth - 2.44m 8 Ft Flat Bottom
17.29ft in
Width Over Standard Tracks
8.17ft in
Dig Depth - Mono Boom
18.02ft in
Dig Height - Mono Boom
30.48ft in
Specifications
Driveline
Displacement
183.1cu in
Engine Manufacturer
Isuzu
Emission Rating
Tier 4
Rated Speed
2000rpm
Engine Output - Net
100.6hp
Number Of Cylinders
4
Number Of Carrier Rollers - Each Side
1
Number Of Track Rollers - Each Side
7
Capacities
Fuel Tank - Diesel
58.2gal
Hydraulic Tank
15.9gal
System Voltage
24V
Number Of Batteries
2
Performance
Tractive Force
24729lb
Slew Speed
13rpm
Ground Bearing Pressure
6.3psi
Slew Torque
25.1lb ft
Boost Pressure
363psi
Breakout - Bucket
23380.2lb
Bucket Pressure
343
Dipper Tearout
15511.9lb
Gradeability
70%
Main Pumps - Maximum Flow
55.5gal/min
Travel Speed - High
3.5mph
Weights
Operating Weight
30644.3lb
