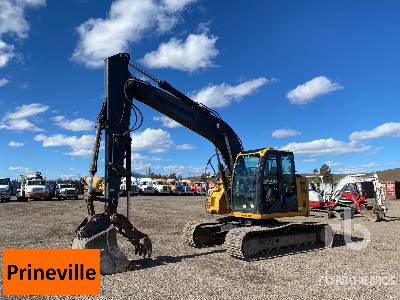

John Deere 135D Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
24.18ft in
C
Shipping Height Of Unit
9.13ft in
I
Max Cutting Height
30.32ft in
J
Max Loading Height
22.25ft in
K
Max Reach Along Ground
27.07ft in
L
Max Vertical Wall Digging Depth
16.44ft in
M
Max Digging Depth
18.15ft in
Boom/Stick Option (Hex) 1
8\'3\" (2520mm) stick
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
24.22ft in
I
Max Cutting Height
31.6ft in
C
Shipping Height Of Unit
9.13ft in
J
Max Loading Height
23.56ft in
K
Max Reach Along Ground
28.61ft in
L
Max Vertical Wall Digging Depth
16.47ft in
M
Max Digging Depth
19.76ft in
Boom/Stick Option (Hex) 2
9\'11\" (3010mm) stick
Dimensions
E
Ground Clearance
1.42ft in
G
Height To Top Of Cab
8.99ft in
B
Width To Outside Of Tracks
8.5ft in
D
Length Of Track On Ground
9.45ft in
H
Tail Swing Radius
4.86ft in
Removal Counterweight Clearance
2.86ft in
Undercarriage
F
Track Gauge
6.53ft in
N
Shoe Size
23.63in
Number Of Shoes Per Side
44
Drawbar Pull
26303lb
Number Of Track Rollers Per Side
7
Number Of Carrier Rollers Per Side
1
Max Travel Speed
3.42mph
Ground Pressure
5.8psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2353
Engine Model
4JJ1X, Tier III certified
Net Power
93hp
Power Measured @
2000rpm
Displacement
183cu in
Aspiration
Turbocharged air-to-air charge air cooler
Operational
Operating Weight
30736.9lb
Fuel Capacity
58.2gal
Cooling System Fluid Capacity
4.3gal
Engine Oil Capacity
4.5gal
Operating Voltage
24V
Swing Drive Fluid Capacity
0.9gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
55.5gal/min
Swing Mechanism
Swing Torque
25077lb ft
Swing Speed
13.7rpm
Buckets
Reference Bucket Capacity
0.7yd3
Minimum Bucket Capacity
0.5yd3
Maximum Bucket Capacity
1.1yd3
