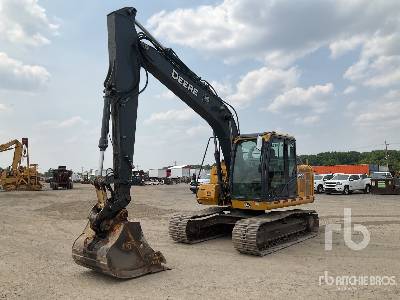

John Deere 130G Midi Excavator

John Deere 130G Midi Excavator Specs front
John Deere 130G Midi Excavator Specs front
John Deere 130G Midi Excavator Specs side
John Deere 130G Midi Excavator Specs side
John Deere 130G Midi Excavator Specs extended
John Deere 130G Midi Excavator Specs extended
Units

Dimensions

Dimensions

E

Ground Clearance

1.35 ft in

H

Tail Swing Radius

7.19 ft in

F

Track Gauge

6.53 ft in


Specifications

Driveline

Displacement

274.7 cu in

Engine Manufacturer

John Deere

Emission Rating

Tier 4

Rated Speed

2000 rpm

Engine Output - Net

97.9 hp

Track Shoe Width

27.6 in

Number Of Cylinders

4

Number Of Carrier Rollers - Each Side

1

Number Of Track Rollers - Each Side

7

Capacities

Fuel Tank - diesel

75.3 gal

Hydraulic Tank

18.3 gal

System Voltage

24 V

Number Of Batteries

2

Performance

Tractive Force

24729 lb

Slew Speed

13 rpm

Ground Bearing Pressure

4.7 psi

Slew Torque

24.4 lb ft

Boost Pressure

363 psi

Breakout - Bucket

21581.7 lb

Bucket Pressure

343

Dipper Tearout

13488.6 lb

Gradeability

70 %

Main Pumps - Maximum Flow

55.5 gal/min

Travel Speed - High

3.5 mph

Weights

Operating Weight

31632 lb

Dimensions

Digging Reach - Mono Boom

28.8 ft in

Dump Height - Mono Boom

21.4 ft in

Dig Height - Mono Boom

29.3 ft in

Track Gauge

6.6 ft in

Dig depth - 2.44m 8 ft flat bottom

19.3 ft in

Standard Dipper

9.9 ft in

Track length on ground

9.5 ft in

Transport Height - Maximum

9.5 ft in

Transport Length Mono Boom

25.3 ft in

Undercarriage Overall Length

11.8 ft in

Overall Width

8.9 ft in

Ground Clearance

1.4 ft in

Tail Swing Radius

7.2 ft in

Dig Depth - Mono Boom

19.8 ft in

Width over standard tracks

8.9 ft in

Ground Level Reach - Mono Boom

28.5 ft in
