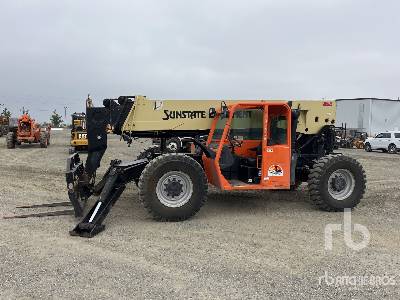

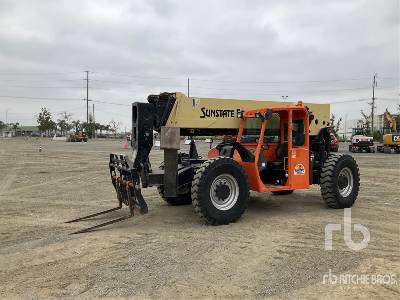

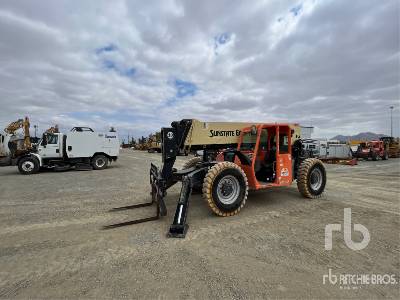

JLG G10-55A Telescopic Forklift

JLG G10-55A Telescopic Forklift Specs front
JLG G10-55A Telescopic Forklift Specs front
JLG G10-55A Telescopic Forklift Specs side
JLG G10-55A Telescopic Forklift Specs side
JLG G10-55A Telescopic Forklift Specs extended
JLG G10-55A Telescopic Forklift Specs extended
Units

Dimensions

Dimensions

A

Length to Fork Face

19.99 ft in

B

Width Over Tires

8.4 ft in

C

Overall Height

8.4 ft in

D

Wheelbase

11.98 ft in

E

Ground Clearance

18 ft in

Lift

F

Max Lift Height

55.12 ft in

G

Max Forward Reach

42 ft in


Specifications

Engine

Engine Make

2240

Engine Model

e 4045TF275

Gross Power

124.8 hp

Displacement

274.7 cu in

Aspiration

turbocharged

Operational

Operating Weight

34400 lb

Fuel Capacity

38.1 gal

Hydraulic System Fluid Capacity

57 gal

Operating Voltage

12 V

Alternator Supplied Amperage

65 amps

Drawbar Pull

20000 lb

Tire Size

14.00x24 12PR

Transmission

Transmission Type

ZF WG98 powershift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - forward

19.9 mph

Hydraulic

Pump Type

load sensing piston pump

Lift

Max Lift Capacity

10000 lb

Max Lift Height

55.2 ft in

Max Load at Max Height

5000 lb

Max Forward Reach

42 ft in

Max Load at Max Reach

3000 lb

Dimensions

Length to Fork Face

20 ft in

Width Over Tires

8.4 ft in

Overall Height

8.4 ft in

Wheelbase

12 ft in

Ground Clearance

18 ft in

Turning Radius Outside Tires

14.1 ft in
