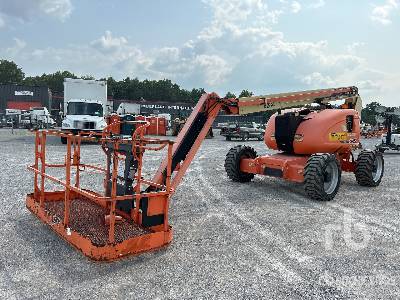

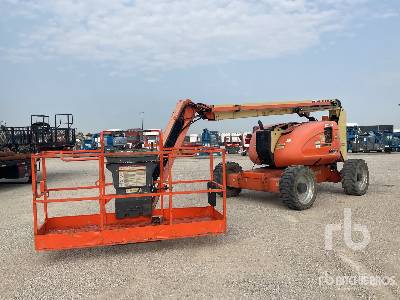

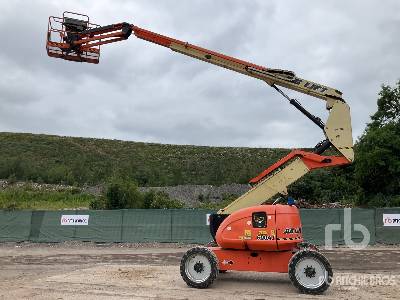

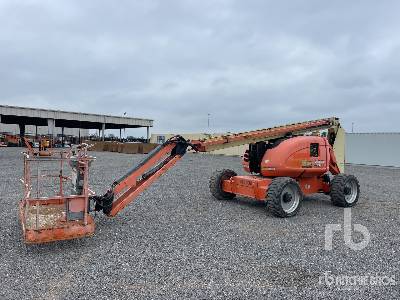

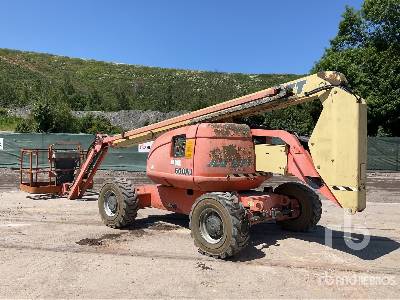

JLG 600AJ 4WD Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

28.97 in

B

Overall Width

8.01 ft in

C

Overall Height - mast lowered

8.34 ft in

D

Wheelbase

8.01 ft in

E

Ground Clearance

7.88 in

Platform

F

Max Platform Height

60.6 ft in

G

Max Horizontal Reach

39.7 ft in


Specifications

Engine

Diesel Engine Type

DEUTZ TD 2.9L Tier 4 Final

Diesel Engine Power

67 hp

Dual Fuel Engine Type

Ford MSG425

Dual Fuel Engine Power

84 hp

Maximum Ground Bearing Pressure

75 psi

Engine Make

2349

Engine Model

D2011L04

Gross Power

49 hp

Fuel Type

Diesel

System Voltage

12 V

Operational

Operating Weight

23049.4 lb

Fuel Capacity

30.1 gal

Hydraulic System Fluid Capacity

30.6 gal

Max Speed

4.3 mph

Tire Size

14x17.5

Tire Fill/Type

Lug Tread

Performance

Axle Oscillation

0.8 ft in

Drive Speed

4.3 mph

Gradeability

45 %

Swing

360 degrees

Swing Type

Continuous

Platform

Max Platform Height

60.6 ft in

Max Horizontal Reach

39.7 ft in

Max Platform Weight Capacity

500.5 lb

Platform Inner Length

96.1 in

Platform Inner Width

35.9 in

Platform Rotation

180 degrees

Platform Capacity - Unrestricted

500 lb

Dimensions

Wheelbase

8.1 ft in

Platform Dimension A

3 ft in

Platform Dimension B

8 ft in

Up and Over Height

26.7 ft in

Articulation Angle

130 degrees

Overall Length

29 in

Overall Width

8.1 ft in

Overall Height - mast lowered

8.4 ft in

Turning Radius

11.8 ft in

Ground Clearance

7.9 in
