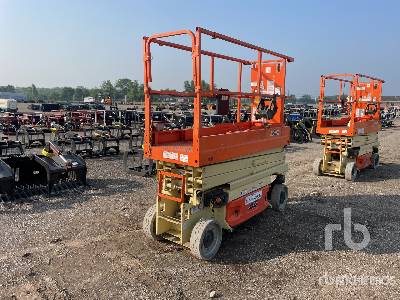

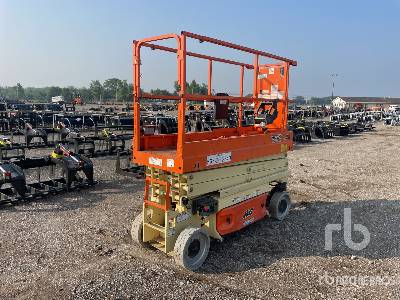

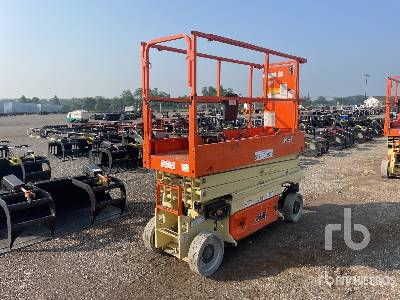

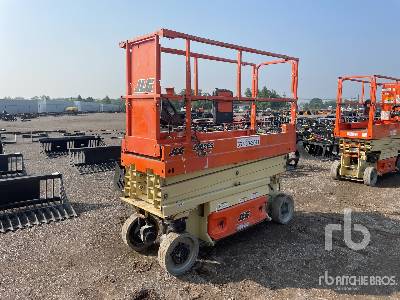

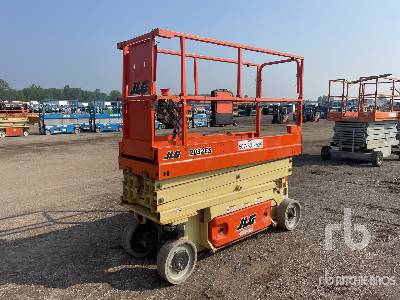

JLG 2032ES Scissor Lift
Units
Dimensions
Dimensions
A
Overall Length
91in
D
Wheelbase
6.2ft in
B
Overall Width
2.8ft in
E
Ground Clearance
48in
Platform Dimension A
2.6ft in
Platform Dimension B
7.7ft in
Turning Radius
6.9ft in
Overall Height
7.3ft in
Platform
F
Max Platform Height
3.8ft in
J
Height Of Rails
3.7ft in
Platform Capacity - Extension
250lb
Max Working Height
25ft in
Lift Time
28sec
Lower Time
40sec
Platform Capacity - Unrestricted
800lb
Platform Railing Height
25.99ft in
Specifications
Engine
Maximum Ground Bearing Pressure
81psi
Battery Amp Hours
4 x 6V, 220 amp-hour
Charger Amps
20amps
Operational
Operating Weight
3610lb
Hydraulic System Fluid Capacity
1.3gal
Tire Size
16 X 5 in
Hydraulic Pump Type
Fixed Displacement Gear
Performance
Drive Speed - Platform Elevated
0.5mph
Drive Speed - Platform Lowered
2.8mph
Drive System
24V Electric
Maximum Drive Height
20.1ft in
Gradeability
25%
Brakes
Brakes Type
Electric, Friction
