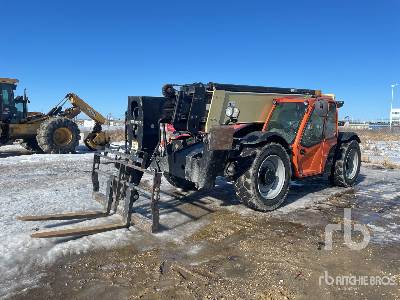

JLG 1255 Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.6ft in
C
Overall Height
8.4ft in
D
Wheelbase
11.6ft in
Width
8.5ft in
Overall Length
20.11ft in
Lift
F
Max Lift Height
55ft in
G
Max Forward Reach
42ft in
Max Load At Max Height
5000lb
Max Load At Max Reach
3500lb
Max Lift Capacity
12000lb
Load Center
2ft in
Specifications
Engine
Engine Model
QSF3.8L Tier 4 Final
Gross Power
130hp
Power Measured @
1500rpm
Operational
Fuel Capacity
38.3gal
Drawbar Pull
25400lb
Tire Size
400/75-28
Performance
Maximum Lift
16sec
Maximum Lower
13sec
Maximum Telescope In
15sec
Maximum Telescope Out
18sec
Maximum Travel
20mph
Transmission
Transmission Type
Powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Weights
Operating Weight
33960lb
Axles
Front
High Bias, Limited Slip
Rear
Planetary
