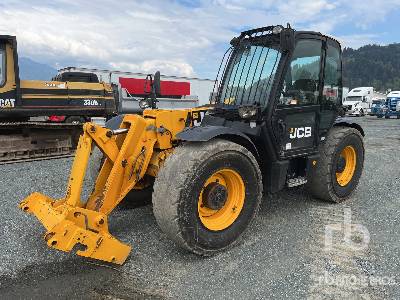

JCB TLT30 Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
9.03ft in
D
Wheelbase
5.58ft in
Free Lift
55.52in
Height Of Operators Seat - High
42.96in
Height Of Operators Seat - Low
42.13in
Height Of Overhead Guard- Low
82.88in
Height Of Overhead Guard - Standard
86.82in
Boom Horizontal Reach
7.85ft in
Max Height Of Boom
15.18ft in
Max Lift Height
13.13ft in
Maximum Width Of Machine
50.4in
Minimum Ground Clearance
5.12in
Reach @ Ground Level
7.32ft in
Rollback @ Ground
37degrees
Turning Radius
8.17ft in
Load Centre
19.69in
Fork Carriage Width
47.25in
Specifications
Engine
Number Of Cylinders
D-4/G-4
Tier Compliant
Tier 3 Stage III
Engine Output - Gross
57.7hp
Engine Make
D-Perkins/G-G.M.
Engine Model
D-404 2.2/G-3.0 L4
Power Measured @
2600rpm
Displacement
181cu in
Capacities
Diesel Tank Capacity
11.7gal
Shovel Dump Height
94.5in
Struck Capacity
0.7yd3
Lift Capacities
6613.9lb
Shovel Capacity - Standard General Purpose
0.8yd3
Operational
Gradeability-Laden
25%
Shovel Width
54.6in
Gradeability-Unladen
21%
Travel Speed
12.5mph
Transmission Type
TCR
Hydraulic System
Working Pressure
170 bar
Oil Flow For Attachments
7.4gal/min
Brakes
Park Brake
Hand
