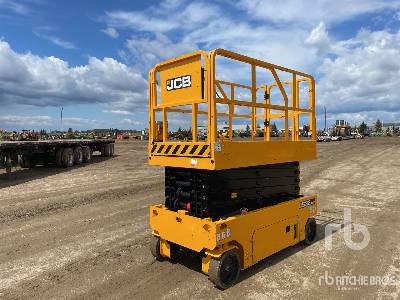

JCB S2032E Scissor Lift
Units
Dimensions
Dimensions
D
Wheelbase
73in
E
Ground Clearance
4in
Solid Tyre Dimensions
305 x 115 mm, (12 x 4.5)in
Turning Radius - Outside
6.11ft in
Weight
4043.28lb
Platform
F
Max Platform Height
20.8ft in
Max Working Height
26.8ft in
Extension Outreach
2.96ft in
Max. Allowable Slope (Front/Back)
3degrees
Overall Height (Stowed, Guardrail Folded)
6.01ft in
Overall Height (Stowed, Guardrail Unfolded)
7.29ft in
Overall Length (Stowed , Guardrail Folded)
7.85ft in
Overall Width (Stowed)
2.66ft in
Max. Allowable Side Force (Outdoor)
45lb ft
Max Allowable Slope (Side/Side)
1.5degrees
Max Allowable Side Force (Indoor)
90lb ft
Max Allowable Wind Speed (Outdoor)
28mph
Max Driving Speed (Raised)
0.5mph
Max Driving Speed (Stowed)
2mph
Specifications
Electrical System
Power Unit
4.5hp
Input Voltage Of Charger
100-24 VAc
Output Voltage Of Charger
25 A
Battery
6V x 4 (225)
Engine
Engine Model
S2032E
Operational
Load Capacity
1851.9lb
Hydraulic System
System Pressure
3481psi
Hydraulic System Tank
4.8gal
Hydraulic Oil Capacity(Power Angle Tilt Dozer)
3.7gal
Brakes
Drive And Steer Model
2, front-wheel
Brakes Type
2, rear-wheel
Gradeability
25
