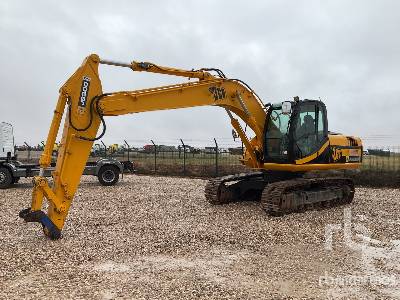

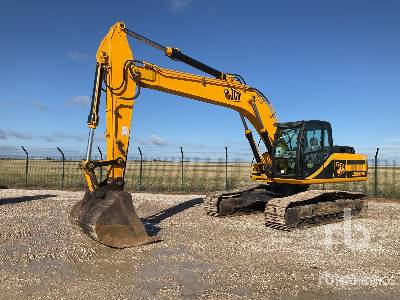

JCB JS160LC TAB Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (Hex) 1

I

Max Cutting Height

33.55ft in

J

Max Loading Height

26.17ft in

K

Max Reach Along Ground

28.39ft in

L

Max Vertical Wall Digging Depth

13.96ft in

M

Max Digging Depth

17.64ft in

Boom/Stick Option (Hex) 1

T.A. boom 5350 mm with arm 2250 mm

Minimum Swing Radius

85.44in

Max Digging Reach On Ground

28.39ft in

Max Digging Reach

28.98ft in

Boom/Stick Option (Hex) 2

I

Max Cutting Height

34.95ft in

J

Max Loading Height

27.45ft in

K

Max Reach Along Ground

29.84ft in

L

Max Vertical Wall Digging Depth

15.49ft in

M

Max Digging Depth

19.06ft in

Max Digging Reach On Ground

29.84ft in

Boom/Stick Option (Hex) 2

T.A. boom 5350 mm with arm 2700 mm

Max Digging Reach

30.39ft in

Minimum Swing Radius

87.68in

Boom/Stick Option (Hex) 3

I

Max Cutting Height

35.44ft in

J

Max Loading Height

28.44ft in

K

Max Reach Along Ground

31.05ft in

L

Max Vertical Wall Digging Depth

17.17ft in

M

Max Digging Depth

20.12ft in

Boom/Stick Option (Hex) 3

T.A. boom 5350 mm with arm

Minimum Swing Radius

101.86in

Dimensions

E

Ground Clearance

1.55ft in

G

Height To Top Of Cab

9.73ft in

B

Width To Outside Of Tracks

9.19ft in

D

Length Of Track On Ground

10.14ft in

H

Tail Swing Radius

7.68ft in

Transport Height

123.63in

Undercarriage Overall Length

12.93ft in

Removal Counterweight Clearance

3.45ft in

Transport Length

339.53in

Undercarriage

F

Track Gauge

7.22ft in

N

Shoe Size

23.63in

Number Of Track Rollers Per Side

7

Ground Pressure

7psi

Number Of Carrier Rollers Per Side

2

Number Of Shoes Per Side

43

Max Travel Speed

3.11mph

Track Adjustment

Grease cylinder type


Specifications

Engine

Battery

2 x 12 V

Number Of Cylinders

4

Engine Make

2353

Engine Model

JCB EcoMAX 444 TCA EU Stage IV, EPA Tier 4 Final compliant

Net Power

124.8hp

Power Measured @

2200rpm

Displacement

268.6cu in

Alternator

55amps

Capacities

Def Tank

3.8gal

Engine Oil

0.2gal

Engine Coolant

1.4gal

Operational

Operating Weight

37996.7lb

Fuel Capacity

66.9gal

Cooling System Fluid Capacity

4.4gal

Hydraulic System Fluid Capacity

37.6gal

Engine Oil Capacity

3.5gal

Operating Voltage

24V

Swing Drive Fluid Capacity

1.6gal

Alternator Supplied Amperage

50amps

Hydraulic System Relief Valve Pressure

4554psi

Hydraulic Pump Flow Capacity

36.5gal/min

Travel Speed

3.5mph

Swing Mechanism

Swing Gear

Large diameter, internally toothed fully sealed grease bath lubricated

Swing Motor

Axial piston type

Swing Brake

Hydraulic braking plus automatic spring applied disc type parking brake

Swing Torque

2581.5lb ft

Swing Speed

10.4rpm

Buckets

Reference Bucket Capacity

1.2yd3

Minimum Bucket Capacity

0.5yd3

Maximum Bucket Capacity

1.2yd3

Hydraulic System

Power Boost

23.5psi

Main Pump - Maximum Flow

86.7gal/min

Maximum Flow -Servo Pump, Low Noise Gear Pump

5.5gal/min

Travel Circuit

23.5psi

Swing Circuit

19.3psi

Pilot Circuit

2.8psi

Control Valve

A combined ten spool control valve with auxiliary service spool as standard

Brakes

Parking Brake

Disc type, spring applied, automatic hydraulic release

Service Brake

Hydraulic counter balance valve

Gradeability

70 %
