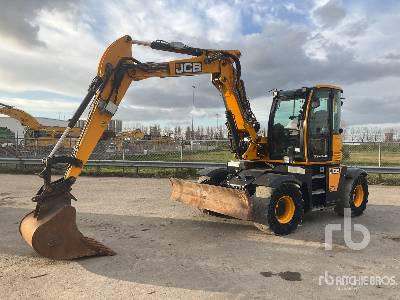

JCB HYDRADIG 110W Mobile Excavator
Dimensions
Boom/Stick Option (Mex) 1
Shipping Length Of Unit
25.12ft in
Shipping Height Of Unit
9.81ft in
Max Cutting Height
26.89ft in
Max Loading Height
20.94ft in
Max Reach Along Ground
23.51ft in
Max Vertical Wall Dig Depth
9.85ft in
Max Digging Depth
12.5ft in
Boom/Stick Option (Mex) 1
TAB - Dipper length - 1.65 m
Boom/Stick Option (Mex) 2
Shipping Length Of Unit
25.37ft in
Shipping Height Of Unit
9.81ft in
Max Cutting Height
28.86ft in
Max Loading Height
22.86ft in
Max Reach Along Ground
25.55ft in
Max Vertical Wall Dig Depth
11.62ft in
Max Digging Depth
14.47ft in
Boom/Stick Option (Mex) 2
TAB - Dipper length - 2.25 m
Boom/Stick Option (Mex) 3
Shipping Height Of Unit
10.28ft in
Shipping Length Of Unit
23.13ft in
Max Cutting Height
21.15ft in
Max Loading Height
15.46ft in
Max Reach Along Ground
19.97ft in
Max Vertical Wall Dig Depth
5.96ft in
Max Digging Depth
11.06ft in
Boom/Stick Option (Mex) 3
Monoboom - Dipper length - 1.65 m
Boom/Stick Option (Mex) 4
Shipping Height Of Unit
11.28ft in
Shipping Length Of Unit
22.79ft in
Max Cutting Height
22.28ft in
Max Loading Height
16.61ft in
Max Reach Along Ground
21.97ft in
Max Vertical Wall Dig Depth
7.75ft in
Max Digging Depth
13.03ft in
Boom/Stick Option (Mex) 4
Monoboom - Dipper length - 2.25 m
Dimensions
Wheelbase
8.7ft in
Overall Width
95.28in
Ground Clearance
0.98ft in
Height To Top Of Cab
9.81ft in
Specifications
Slew System
Slew Motor
Axial piston type
Slew Brake
Hydraulic braking plus automatic spring applied disc type parking brake
Slew Torque
27.0 kNm
Slew Speed
8.9rpm
Slew Gear
11 tooth pinion / 84 tooth ring
Engine
Torque
380.6lb ft
Air Filter Type
Dry element with secondary safety element and in-cab warning sensor
Starting System
12 V
Number Of Cylinders
4
Engine Model
JCB EcoMAX 444 TCA EU Stage IV EPA Tier 4 Final compliant
Engine Type
4-stroke, 4-cylinder in-line, common rail, direct injection, turbocharged and intercooled diesel
Power Measured @
2200rpm
Rated Power
109hp
Displacement
268.6cu in
Torque Measured @
1500rpm
Alternator
150amps
Operational
Operating Weight
22504.8lb
Fuel Capacity
41.5gal
Cooling System Fluid Capacity
7.4gal
Engine Oil Capacity
3.7gal
Hydraulic System Fluid Capacity
50.2gal
Hydraulic System Relief Valve Pressure
4061.1psi
Hydraulic Pump Type
Electronically controlled system using two variable displacement piston pumps plus twin gear pumps for steering, brakes and cooling
Hydraulic Pump Flow Capacity
41.9gal/min
Transmission
Max Travel Speed
24.9mph
Buckets
Minimum Bucket Capacity
0.1yd3
Maximum Bucket Capacity
0.5yd3
