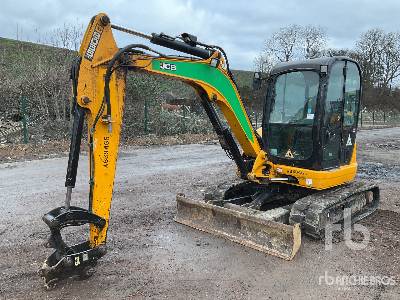

JCB 67C-1 Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
K
Max Reach Along Ground
21.34ft in
Minimum Front Swing Radius (No Offset)
8.66ft in
Maximum Digging Depth – Dozer Up
13.31ft in
Maximum Height To Dipper Nose Pivot Pin
16.91ft in
Maximum Vertical Wallcut Depth
9.73ft in
Minimum Front Swing Radius (Fully Offset)
7.83ft in
Max Digging Reach
21.71ft in
Max.Dumping Height
14.05ft in
Maximum Digging Depth – Dozer Down
13.36ft in
Dimensions
E
Ground Clearance
0.79ft in
G
Height To Top Of Cab
8.48ft in
H
Tail Swing Radius
4.55ft in
F
Track Gauge
5.25ft in
Width Over Tracks
6.57ft in
Overall Width Of Superstructure
5.9ft in
Transport Height- Minimum
8530.19ft in
Transport Length, Minimum
18372.71ft in
Cab Height
61.19in
Undercarriage
Tractive Effort
120.16lb
Number Of Track Rollers Per Side
4
Max Travel Speed
2.68mph
Track Tension
Grease
Specifications
Engine
Fuel
Diesel
Starter Motor
2 KW
Engine Model
KDI 1903
Gross Power
55hp
Cooling System
Water cooled
Net Power
51.5hp
Power Measured @
2200rpm
Displacement
116128.3cu in
Torque Measured @
1500rpm
Operational
Operating Weight
14552.8lb
Fuel Capacity
22gal
Cooling System Fluid Capacity
2.7gal
Hydraulic System Fluid Capacity
24.5gal
Engine Oil Capacity
2gal
Operational Voltage
12V
Hydraulic Pump Flow Capacity
15.2gal/min
Performance
Travel Speed Low
1.7mph
Travel Speed - High
2.9mph
Gradeability
30%
Swing Mechanism
Swing Speed
9.6rpm
Blade
Approach Angle
26degrees
Hydraulic System
Excavator/Track Main Relief
250 bar
Slew Main Relief
216 bar
Nominal Output
38.1gal/min
Blade
Maximum Height
1.6ft in
Dig Depth (Below Ground)
1.9ft in
Reach In Front Of Tracks
2.6ft in
Hydraulic System
Hydraulic Motor (Travel)
Piston
Auxiliary Hydraulic Flow
50.2gal/min
Blade
Blade Width
2018 mm
Hydraulic System
Pump Type
72 cc
Blade
Height
16.5in
Boom
Boom Swing Left
60degrees
Boom Swing Right
60degrees
Dipper Rotation
118degrees
Bucket Tearout
10701lb
Dipper Tearout
6879.2lb
Slew Speed
9rpm
