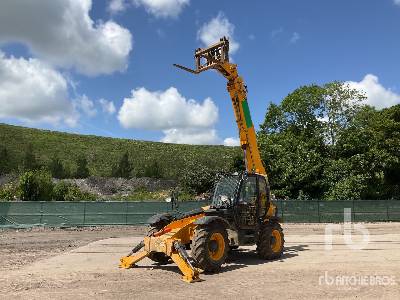

JCB 535-125 HI-VIZ Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.32ft in
B
Width Over Tires
7.71ft in
C
Overall Height
8.5ft in
D
Wheelbase
9.03ft in
Dump Angle
12.5degrees
Lift Capacity To Full Height
3306.94lb
Weight
22191.73lb
Lift
F
Max Lift Height
38.06ft in
Max Lift Capacity
7716.18lb
Specifications
Engine
Number Of Cylinders
4
Engine Model
JCB EcoMAX T4 Fina
Gross Power
73.8hp
Displacement
268.6cu in
Aspiration
turbocharged cooled
Transmission
Lift Capacity At Full Reach
441lb
Travel Speed
18.1mph
Hydraulic System
Bucket Crowd
2.3sec
Retract
12.8sec
Extend
15.7sec
Max Operating Pressure
260 bar
Hydraulic Pump
110 L
Raise Time
10.4sec
Dump Time
1.8sec
Lower Time
8.1sec
