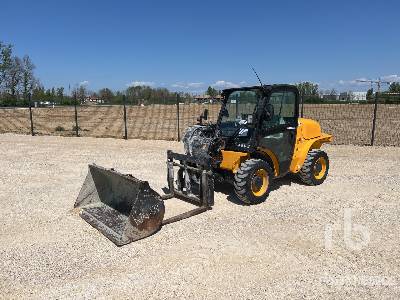

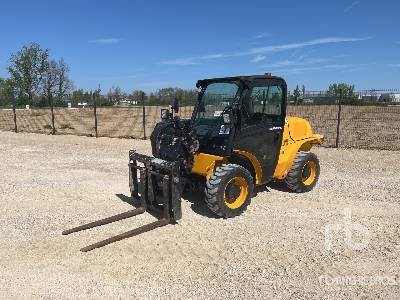

JCB 520 Telescopic Forklift

JCB 520 Telescopic Forklift Specs front
JCB 520 Telescopic Forklift Specs front
JCB 520 Telescopic Forklift Specs side
JCB 520 Telescopic Forklift Specs side
JCB 520 Telescopic Forklift Specs extended
JCB 520 Telescopic Forklift Specs extended
Units

Dimensions

Dimensions

A

Length to Fork Face

11.78 ft in

B

Width Over Tires

5.91 ft in

C

Overall Height

6.96 ft in

D

Wheelbase

5.02 ft in

E

Ground Clearance

0.99 ft in

Lift

F

Max Lift Height

16.41 ft in

G

Max Forward Reach

9.75 ft in


Specifications

Engine

Engine Make

2257

Gross Power

76 hp

Power Measured @

2000 rpm

Max Torque

213.7 lb ft

Torque Measured @

1400 rpm

Operational

Operating Weight

9900 lb

Tire Size

10.5/80-18 non ballasted tires

Transmission

Transmission Type

4-speed Synchro shuttle

Number of Forward Gears

4

Number of Reverse Gears

4

Lift

Max Lift Capacity

4400 lb

Max Lift Height

16.5 ft in

Max Load at Max Height

4400 lb

Max Forward Reach

9.8 ft in

Max Load at Max Reach

1650 lb

Dimensions

Length to Fork Face

11.8 ft in

Width Over Tires

6 ft in

Overall Height

7 ft in

Wheelbase

5.1 ft in

Ground Clearance

1 ft in

Turning Radius Outside Tires

9.9 ft in
