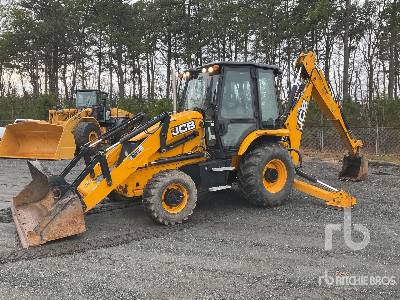

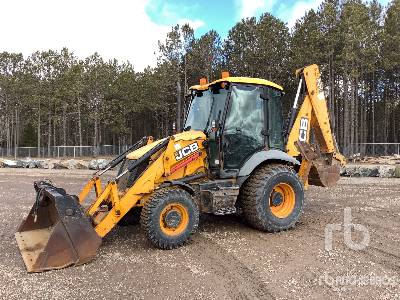

JCB 3CX 15FT (215) Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
13ft in
K
Reach From Swivel - Std
19.43ft in
L
Dig Depth - Std
16.25ft in
M
Reach At Load Height - Std
6.5ft in
Load Height - Ext
15.26ft in
Bucket Dig Force - Ext
5538lb
Bucket Dig Force - Std
5538lb
Dig Depth - Ext
20.08ft in
Reach At Load Height - Ext
10.18ft in
Load At Max Lift - Ext
2800lb
Load At Max Lift - Std
4860lb
Reach From Swivel - Ext
23ft in
Dimensions
A
Transport Length
24.58ft in
B
Transport Width
7.71ft in
C
Transport Height
12.77ft in
D
Wheelbase
7.42ft in
E
Ground Clearance
1.09ft in
Height To Top Of Suspended Cab
9.42ft in
Loader
G
Clearance At Max Dump Height
8.99ft in
H
Reach At Max Dump Height
2.66ft in
I
Dig Depth
1.97in
Bucket Breakout Force
12638lb
Bucket Width
92.5in
Bucket Capacity
1.4yd3
Lift Capacity At Full Height
9231lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2257
Engine Model
444
Gross Power
100hp
Net Power
97.6hp
Power Measured @
2200rpm
Torque Measured @
1300rpm
Net Max Torque
307.6lb ft
Aspiration
Turbo
Displacement
268.6cu in
Operational
Operating Weight 2wd
17037lb
Fuel Capacity
42.3gal
Max Weight
18223lb
Hydraulic System Fluid Capacity
33.6gal
Oil System Fluid Capacity
4gal
Cooling System Fluid Capacity
6.1gal
Transmission Fluid Capacity
4.3gal
Front Axle Fluid Capacity
4.3gal
Rear Axle Fluid Capacity
4.3gal
Turning Radius
13.8ft in
Tire Size Front - 2wd / 4wd
14-17.5 fwd 12 PLY
Rear Tires Size 2wd/4wd
19.5L-24 R4 10 PLY
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Transmission
Transmission Type
JCB powershift
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
21.3mph
Max Speed Reverse
21.3mph
Hydraulic
Pump Type
dual gear pumps
Pump Flow Capacity
39.1gal/min
Relief Valve Pressure
3300psi
