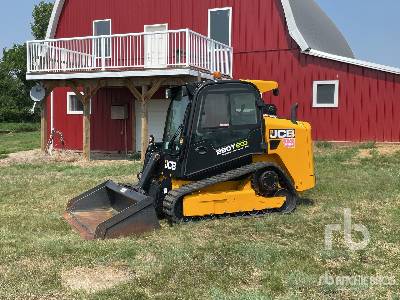

JCB 260T Multi Terrain Loader

JCB 260T Multi Terrain Loader Specs front
JCB 260T Multi Terrain Loader Specs front
JCB 260T Multi Terrain Loader Specs back
JCB 260T Multi Terrain Loader Specs back
JCB 260T Multi Terrain Loader Specs extended
JCB 260T Multi Terrain Loader Specs extended
Units

Dimensions

Dimensions

B

Width Over Tracks

6.5 ft in

C

Height to Top of Cab

6.83 ft in

E

Ground Clearance

9.77 in

G

Clearance at Max Lift and Dump

7.94 ft in

H

Reach at Max Lift and Dump

2.86 ft in


Specifications

Engine

Engine Make

2257

Engine Model

Dieselmax TC-63

Gross Power

84 hp

Power Measured @

2400 rpm

Peak Torque

267 lb ft

Torque Measured @

1800 rpm

Displacement

268 cu in

Aspiration

Turbocharged

Operational

Operating Weight

10205 lb

Fuel Capacity

27.3 gal

Cooling System Fluid Capacity

4.1 gal

Engine Oil Capacity

3.7 gal

Hydraulic System Fluid Capacity

15.9 gal

Operating Voltage

12 V

Max Speed - low range

5.7 mph

Loader

Tipping Angle

7991 degrees

Bucket Capacity

0.8 yd3

Undercarriage

Ground Pressure

4.6 psi

Width of Track

17.7 in

Hydraulic

Pump Flow

23 gal/min

Relief Valve Pressure

3335 psi

Dimensions

Width Over Tracks

6.5 ft in

Length with Bucket

12.2 ft in

Height to Top of Cab

6.9 ft in

Ground Clearance

9.8 in

Clearance at Max Lift and Dump

8 ft in

Reach at Max Lift and Dump

2.9 ft in


Compare similar models

Manufacturer / Model

Operating Weight

Operating Weight

10205 lb

Operating Weight

10139 lb

Operating Weight

10196.4 lb
