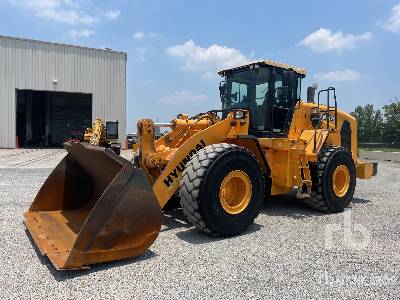

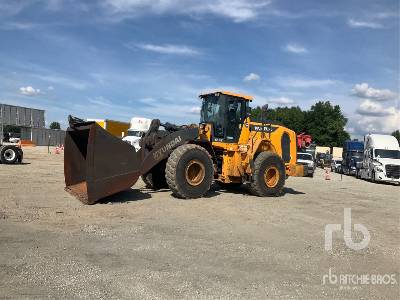

Hyundai HL780XTD-3A Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
12.11ft in
Bucket Capacity - Heaped
6.68yd3
Bucket Capacity - Struck
5.63yd3
Bucket Width
11.32ft in
Breakout Force
53700lb
Dimensions
E
Ground Clearance
1.56ft in
A
Length With Bucket On Ground
31.93ft in
B
Width Over Tires
11.32ft in
C
Height To Top Of Cab
12.05ft in
D
Wheelbase
12.14ft in
F
Hinge Pin - Max Height
16.08ft in
H
Reach At Max Lift And Dump
4.83ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2347
Engine Model
QSM11
Net Power
320hp
Gross Power
335hp
Power Measured @
2100rpm
Max Torque
1257lb ft
Displacement
671.3cu in
Torque Measured @
1400rpm
Aspiration
turbocharge
Operational
Operating Weight
65036.4lb
Fuel Capacity
124.2gal
Hydraulic System Fluid Capacity
62.1gal
Engine Oil Fluid Capacity
10.1gal
Cooling System Fluid Capacity
17.2gal
Transmission Fluid Capacity
11.4gal
Front Axle/Diff Fluid Capacity
15.9gal
Rear Axle/Diff Fluid Capacity
15.9gal
Static Tipping Weight
44313lb
Operating Voltage
24V
Alternator Supplied Amperage
70amps
Rear Axle Oscillation
26degrees
Tire Size
29.5-25 22 PR L3
Transmission
Transmission Type
full automatic power shift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
21.6mph
Max Speed - Reverse
14.5mph
Hydraulic System
Relief Valve Setting
2990psi
Pump Flow Capacity
125gal/min
Raise Time
6.4sec
Dump Time
1.3sec
Lower Time
3.5sec
Pump Type
Open-centered, tandem circuit system
