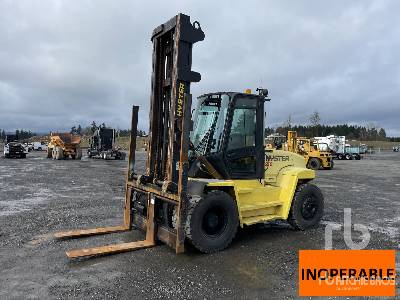

Hyster H80FT Diesel Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
9.67ft in
B
Overall Width
4.6ft in
C
Overall Height - Mast Lowered
7.13ft in
D
Wheelbase
6.01ft in
E
Ground Clearance
7.64in
F
Height To Top Of Overhead Guard
7.41ft in
G
Max Fork Height
10.01ft in
Turning Radius
8.44ft in
Mast
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
12degrees
Max Fork Spread
43.51in
Lower Speed
92.5ft/min
Load Center
24.02in
Load Capacity
8016.01lb
Lift Speed
129.9ft/min
Specifications
Engine
Number Of Cylinders
4
Engine Make
2347
Power
78hp
Torque
225lb ft
Power Measured @
2400rpm
Displacement
275cu in
Torque Measured @
1300rpm
Fuel Type
Diesel
Operational
Operating Weight
13576.1lb
Tire Type
Pneumatic
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
12.7mph
