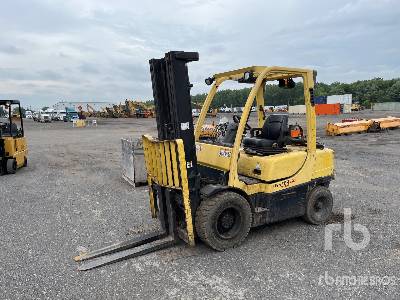

Hyster H60FT DM Gas Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
8.64ft in
B
Overall Width
3.8ft in
C
Overall Height - Mast Lowered
7.37ft in
D
Wheelbase
5.33ft in
E
Ground Clearance
5.95in
F
Height To Top Of Overhead Guard
7.17ft in
G
Max Fork Height
10.53ft in
Turning Radius
7.48ft in
Mast
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
10degrees
Max Fork Spread
43.27in
Lower Speed
83ft/min
Load Center
24.02in
Load Capacity
6000lb
Lift Speed
99ft/min
Specifications
Engine
Number Of Cylinders
4
Engine Make
2357
Engine Model
F2
Power
50hp
Torque
115lb ft
Displacement
133.3cu in
Torque Measured @
1800rpm
Fuel Type
Gas
Operational
Operating Weight
9784.2lb
Tire Type
Pneumatic
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
7.4mph
