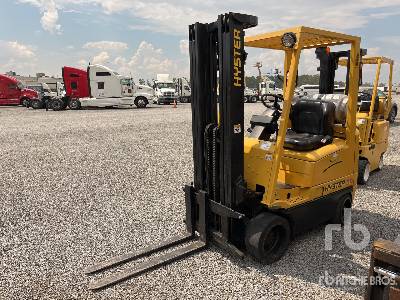

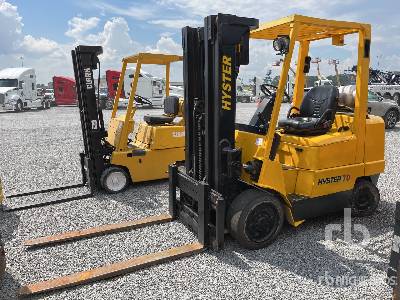

Hyster H2.0FT DM+2 LPG Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
8.16ft in
B
Overall Width
3.8ft in
C
Overall Height - Mast Lowered
7.12ft in
D
Wheelbase
5.33ft in
E
Ground Clearance
6.3in
F
Height To Top Of Overhead Guard
7.09ft in
G
Max Fork Height
10.67ft in
Turning Radius
7.06ft in
Mast
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
5degrees
Lower Speed
82.68ft/min
Load Capacity
4409.25lb
Load Center
19.69in
Lift Speed
120.08ft/min
Specifications
Engine
Number Of Cylinders
4
Engine Make
2374
Engine Model
GM 2.4L
Power
62hp
Power Measured @
2700rpm
Displacement
146.5cu in
Fuel Type
LPG
Operational
Operating Weight
8130.7lb
Tire Type
Pneumatic
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
12.2mph
