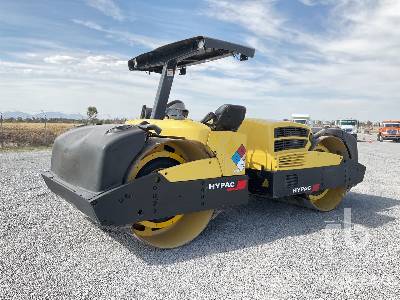

Hypac C350D (10-14ton) Static Smooth Drum Roller

Hypac C350D (10-14ton) Static Smooth Drum Roller Specs front
Hypac C350D (10-14ton) Static Smooth Drum Roller Specs front
Hypac C350D (10-14ton) Static Smooth Drum Roller Specs side
Hypac C350D (10-14ton) Static Smooth Drum Roller Specs side
Hypac C350D (10-14ton) Static Smooth Drum Roller Specs back
Hypac C350D (10-14ton) Static Smooth Drum Roller Specs back
Units

Dimensions

Dimensions

A

Overall Length

16.51 in

B

Overall Width

5.22 ft in

D

Wheelbase

11.67 ft in

E

Ground Clearance

1.67 ft in

F

Drum Diameter - Front

4.01 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2347

Engine Model

4B3.3TAA

Gross Power

78 hp

Power Measured @

2100 rpm

Operational

Fuel Capacity

30.2 gal

Hydraulic System Fluid Capacity

15 gal

Cooling System Fluid Capacity

4 gal

Spray Water Capacity

170.4 gal

Max Speed

10.2 mph

Operating Voltage

12 V

Weights

Operating Weight - standard

21483 lb

Operating Weight - max ballast

28413 lb

Max Static Linear Load - Drive Drum

304 lb/in

Max Static Linear Load - guide drum

223 lb/in

Dimensions

Wheelbase

11.7 ft in

Overall Length

16.6 in

Overall Width

5.3 ft in

Height with ROPS

9.2 ft in

Height with out ROPS

6.5 ft in

Ground Clearance

1.7 ft in

Drum Diameter - Front

4.1 ft in

Drum Diameter - Rear

5.1 ft in
