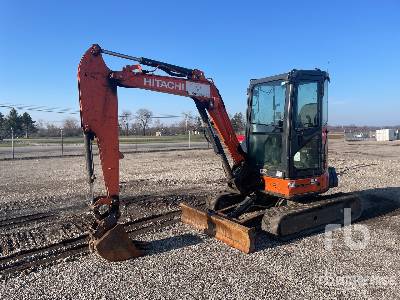

Hitachi ZX35U-5 Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
16ft in
M
Max Digging Depth
10ft in
Boom/Stick Option (Hex) 1
1315-mm (4 ft. 4 in.) Standard Arm and Canopy
Max Digging Reach
17.11ft in
Max.Dumping Height
11.4ft in
Minimum Swing Radius
81.89in
Boom/Stick Option (Hex) 2
I
Max Cutting Height
16.3ft in
M
Max Digging Depth
11.4ft in
Max.Dumping Height
11.9ft in
Boom/Stick Option (Hex) 2
1715-mm (5 ft. 8 in.) Long Arm and Canopy
Max Digging Reach
18.11ft in
Minimum Swing Radius
86.23in
Boom/Stick Option (Hex) 3
I
Max Cutting Height
15.5ft in
M
Max Digging Depth
10ft in
Minimum Swing Radius
182.68in
Boom/Stick Option (Hex) 3
1315-mm (4 ft. 4 in.) Standard Arm and Cab
Max Digging Reach
17.11ft in
Max.Dumping Height
10.1ft in
Boom/Stick Option (Hex) 4
I
Max Cutting Height
15.7ft in
M
Max Digging Depth
11.4ft in
Minimum Swing Radius
90.56in
Boom/Stick Option (Hex) 4
1715-mm (5 ft. 8 in.) Long Arm and Cab
Max Digging Reach
18.11ft in
Max.Dumping Height
11.1ft in
Dimensions
O
Counterweight Clearance
1.81ft in
E
Ground Clearance
0.92ft in
H
Tail Swing Radius
2.86ft in
Blade Width
5.9ft in
Overall Height Cab
8.2ft in
Overall Height Canopy
8.2ft in
Track Width
0.99ft in
Undercarriage
Tracks, Rubber
11.82in
Specifications
Engine
Emission Tier Level
EPA Final Tier 4
Engine Model
3TNV74F
Net Power
23.4hp
Power Measured @
2400rpm
Displacement
100.3cu in
Alternator
55amps
Capacities
Engine Oil With Filter
2gal
Fuel Tank
11.1gal
Hydraulic Tank
8.5gal
Cooling System
1.4gal
Operational
Blade Height
14.7in
Performance
Travel Speed Low
1.8mph
Travel Speed - High
2.7mph
Swing Mechanism
Swing Brake
Spring-applied, hydraulically released, automatic, disc type
Swing Speed
9rpm
Weights
Counterweight
1190.5lb
Buckets
Bucket Digging Force - Sae
4271.4lb
Arm Digging Force
6092.4lb
Hydraulic
Pump Piston
20.2gal/min
Blade
Maximum Drop Below Ground
1.4ft in
Optional Blade Edge Profile
296 kg (653 lb)
Hydraulic
Gear Pump
6.1gal/min
Hydraulic System
Auxiliary Hydraulic Flow
16.2gal/min
Blade
Maximum Lift Above Ground
1.2ft in
Boom
Boom Swing Left
72degrees
Boom Swing Right
62degrees
